Husqvarna TC100i - 970745002 - Collector

Description

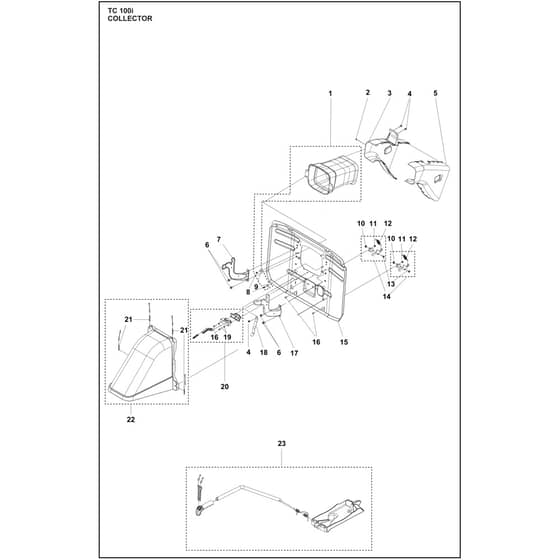

Husqvarna TC100i - 970745002 - Collector - Parts Diagram

	Part No.	Details
1	HV531 14 82-06 Available to backorder	Chute Assy	£62.76 £52.30
2	HV547 40 33-54 Available to backorder	Screw	£2.14 £1.78
3	HV531 14 81-93 Available to backorder	Chute	£37.80 £31.50
4	HV546 30 37-01 Available to backorder	Bolt	£2.14 £1.78
5	HV531 14 81-94 Available to backorder	Chute	£34.24 £28.53
6	HV547 40 32-43 Available to backorder	Bolt	£2.59 £2.16
7	HV531 14 81-78 Available to backorder	Hinge Plate	£41.11 £34.26
9	HV547 40 32-11 Available to backorder	Washer	£3.31 £2.76
10	HV547 40 31-03 Available to backorder	Hexagon Locking Nut	£2.96 £2.47
12	HV531 14 81-24 Available to backorder	Spring	£6.49 £5.41
13	HV531 14 81-85 Available to backorder	Bolt	£1.08 £0.90
14	HV531 14 82-04 Available to backorder	Installation Kit	£21.85 £18.21
15	HV531 14 79-91 Available to backorder	Backplate	£220.08 £183.40
16	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.30 £1.92
17	HV531 14 81-79 Available to backorder	Hinge Plate	£41.11 £34.26
18	HV531 14 79-01 Available to backorder	Plate	£8.48 £7.07
19	HV547 40 32-07 Available to backorder	Washer	£2.14 £1.78
20	HV531 14 82-05 Available to backorder	Lever Assy	£13.00 £10.83
21	HV531 14 81-54 Available to backorder	Split Pin	£1.18 £0.98
