Husqvarna Tc 38

Model Year -

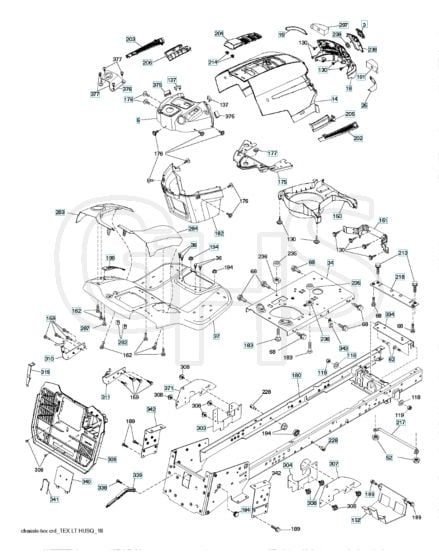

Chassis & Enclosures - Parts Diagram

	Part No.	Details
-1	HV532 43 99-76 Available to backorder	Plug	£9.08 £7.57
14	HV532 44 12-67 Available to backorder	Hood	£138.84 £115.70
62	HV872 11 06-08 Available to backorder	Bolt	£7.06 £5.88
119	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
130	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
150	HV532 40 66-62 Available to backorder	Air Duct	£40.38 £33.65
151	HV532 40 78-07 Available to backorder	Bracket	£51.25 £42.71
152	HV532 19 95-35 Available to backorder	Shield	£48.07 £40.06
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
162	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
175	HV532 19 94-72 Available to backorder	Plate	£60.12 £50.10
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-28 Available to backorder	Bushing	£10.88 £9.07
182	HV532 40 71-76 Available to backorder	Dash	£135.00 £112.50
183	HV874 52 05-20 Available to backorder	Bolt	£4.74 £3.95
184	HV587 63 36-01 Available to backorder	Plug	£3.84 £3.20
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
204	HV532 44 13-75 Available to backorder	Cover	£39.10 £32.58
205	HV532 44 13-44 Available to backorder	Skirt	£26.28 £21.90
206	HV532 44 13-45 Available to backorder	Skirt	£26.92 £22.43
214	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
239	HV532 40 48-83 Available to backorder	Clip	£0.90 £0.75
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
283	HV532 44 05-31 Available to backorder	Console	£41.65 £34.71
303	HV587 49 31-02 Available to backorder	Shield	£27.38 £22.82
307	HV587 52 74-01 Available to backorder	Shield	£15.38 £12.82
308	HV532 17 18-77 Available to backorder	Bolt	£5.02 £4.18
309	HV501 18 83-01 Available to backorder	Backplate	£117.96 £98.30
319	HV532 17 46-62 Available to backorder	Bracket	£5.89 £4.91
341	HV582 06 08-01 Available to backorder	Latch	£7.70 £6.42
342	HV582 82 68-02 Available to backorder	Bracket	£44.15 £36.79
371	HV587 49 45-01 Available to backorder	Shield	£34.60 £28.83
375	HV586 90 82-01 Available to backorder	Bumper	£5.90 £4.92
377	HV589 45 53-01 Available to backorder	Screw	£0.77 £0.64
