Husqvarna Tc 238 - Mower Deck & Cutting Deck

Name: Husqvarna Tc 238 - Mower Deck & Cutting Deck
SKU: tc_238_mower_deck_cutting_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. tc_238_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Tc 238 - Mower Deck & Cutting Deck

Description

Husqvarna Tc 238

Model Year -

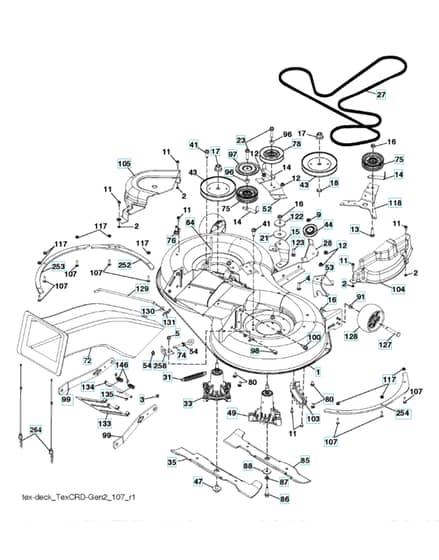

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
5	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
9	HV585 69 13-01 Available to backorder	Nut	£2.94 £2.45
11	HV532 13 77-29 In stock	Screw	£2.22 £1.85
13	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
17	HV596 13 48-01 Available to backorder	Hexagon Nut	£1.51 £1.26
18	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
21	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
31	HV587 35 84-01 Available to backorder	Spring	£14.74 £12.28
33	HV587 81 97-01 Available to backorder	Mandrel	£158.64 £132.20
35	HV532 42 79-84 In stock	Ride On Blade	£26.64 £22.20
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
43	HV532 19 97-91 In stock	Pulley	£38.28 £31.90
44	HV532 19 95-34 In stock	Pulley	£18.66 £15.55
47	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
49	HV532 16 55-79 Available to backorder	Spindle	£122.64 £102.20
72	HV581 45 41-03 In stock	Chute	£90.36 £75.30
76	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
84	HV532 40 01-40 Available to backorder	Keeper	£39.14 £32.62
85	HV532 42 79-85 In stock	Blade	£26.64 £22.20
88	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
98	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
99	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
100	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
122	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
127	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
128	HV589 52 73-01 Available to backorder	Wheel	£20.74 £17.28
131	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
135	HV532 43 79-88 Available to backorder	Ring	£5.32 £4.43
