Husqvarna TC 142T - Mower Deck & Cutting Deck

Description

Husqvarna Tc 142T

Model Year -

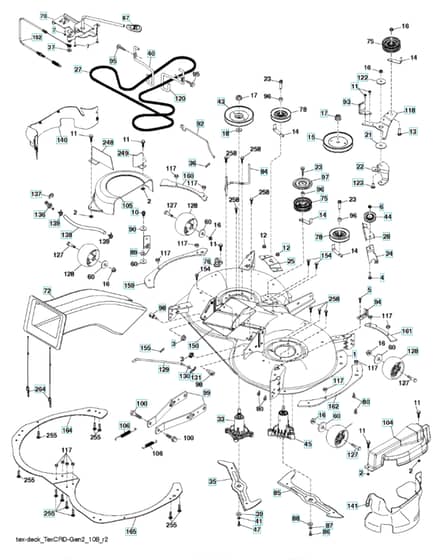

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
2	HV532 42 30-62 Available to backorder	Nut	£1.20 £1.00
3	HV873 90 05-00 Available to backorder	Lock Nut	£2.69 £2.24
5	HV817 00 05-10 Available to backorder	Bolt	£3.59 £2.99
6	HV585 69 13-01 Available to backorder	Nut	£2.94 £2.45
10	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
11	HV532 13 77-29 In stock	Screw	£2.22 £1.85
12	HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc	£2.69 £2.24
13	HV596 13 61-01 Available to backorder	Bolt	£3.97 £3.31
14	HV597 02 49-01 Available to backorder	Keeper	£7.03 £5.86
15	HV532 19 59-45 Available to backorder	Pulley	£55.91 £46.59
16	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
17	HV596 13 48-01 Available to backorder	Hexagon Nut	£1.51 £1.26
18	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
21	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
23	HV817 49 06-28 Available to backorder	Bolt	£8.03 £6.69
27	HV583 58 16-01 In stock	Cutter Deck Belt 42" - 960510146	£57.72 £48.10
27	HV591 06 53-10 In stock	Cutter Deck Belt 42" - 960510181	£63.31 £52.76
33	HV587 81 97-01 Available to backorder	Mandrel	£158.64 £132.20
35	HV532 18 05-83 Available to backorder	Blade	£33.49 £27.91
39	HV581 52 65-01 Available to backorder	Washer	£1.67 £1.39
40	HV531 16 95-01 Available to backorder	Belt Guide	£19.57 £16.31
43	HV583 56 82-01 Available to backorder	Pulley	£57.35 £47.79
44	HV532 19 95-34 In stock	Pulley	£18.66 £15.55
45	HV532 16 55-79 Available to backorder	Spindle	£122.64 £102.20
47	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
67	HV532 40 30-12 Available to backorder	Handle	£13.46 £11.22
72	HV581 45 41-03 In stock	Chute	£90.36 £75.30
75	HV597 02 50-01 In stock	Pulley	£53.39 £44.49
78	HV593 78 78-01 In stock	Pulley	Was £56.14 £46.78 Special Price £37.74 £31.45
85	HV532 18 05-84 Available to backorder	Blade	£33.49 £27.91
88	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
90	HV532 19 90-92 Available to backorder	Spacer	£5.75 £4.79
93	HV592 85 49-02 Available to backorder	Brake	£25.00 £20.83
94	HV532 19 72-50 Available to backorder	Bracket	£8.98 £7.48
95	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
99	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
100	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
105	HV532 44 47-55 Available to backorder	Cover	£35.88 £29.90
106	HV532 19 32-16 Available to backorder	Ressort Retour Frein De Lame	£6.79 £5.66
120	HV531 16 97-01 Available to backorder	Belt Guide	£14.36 £11.97
122	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
127	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
128	HV589 52 73-01 Available to backorder	Wheel	£20.74 £17.28
131	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
137	HV812 00 00-29 In stock	Retainer Ring	£0.77 £0.64
140	HV501 58 00-01 Available to backorder	Guard	£73.68 £61.40
141	HV501 57 96-02 Available to backorder	Guard	£73.68 £61.40
154	HV532 19 98-55 Available to backorder	Screw	£1.60 £1.33
155	HV532 00 44-97 Available to backorder	Clip	£1.49 £1.24
159	HV585 30 95-05 Available to backorder	Reinforcement Plate	£11.38 £9.48
160	HV585 30 94-05 Available to backorder	Reinforcement Plate	£6.68 £5.57
161	HV585 31 60-05 Available to backorder	Reinforcement Plate	£5.36 £4.47
162	HV585 31 61-05 Available to backorder	Reinforcement Plate	£12.71 £10.59
164	HV589 35 85-02 Available to backorder	Baffle Plate	£68.76 £57.30
165	HV587 42 61-02 Available to backorder	Baffle	£44.86 £37.38
258	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
