Husqvarna Tc 142T - Electrical

Name: Husqvarna Tc 142T - Electrical
SKU: tc_142t_electrical-group
Price: 3.57 GBP
Availability: InStock

Description

Husqvarna Tc 142T

Model Year -

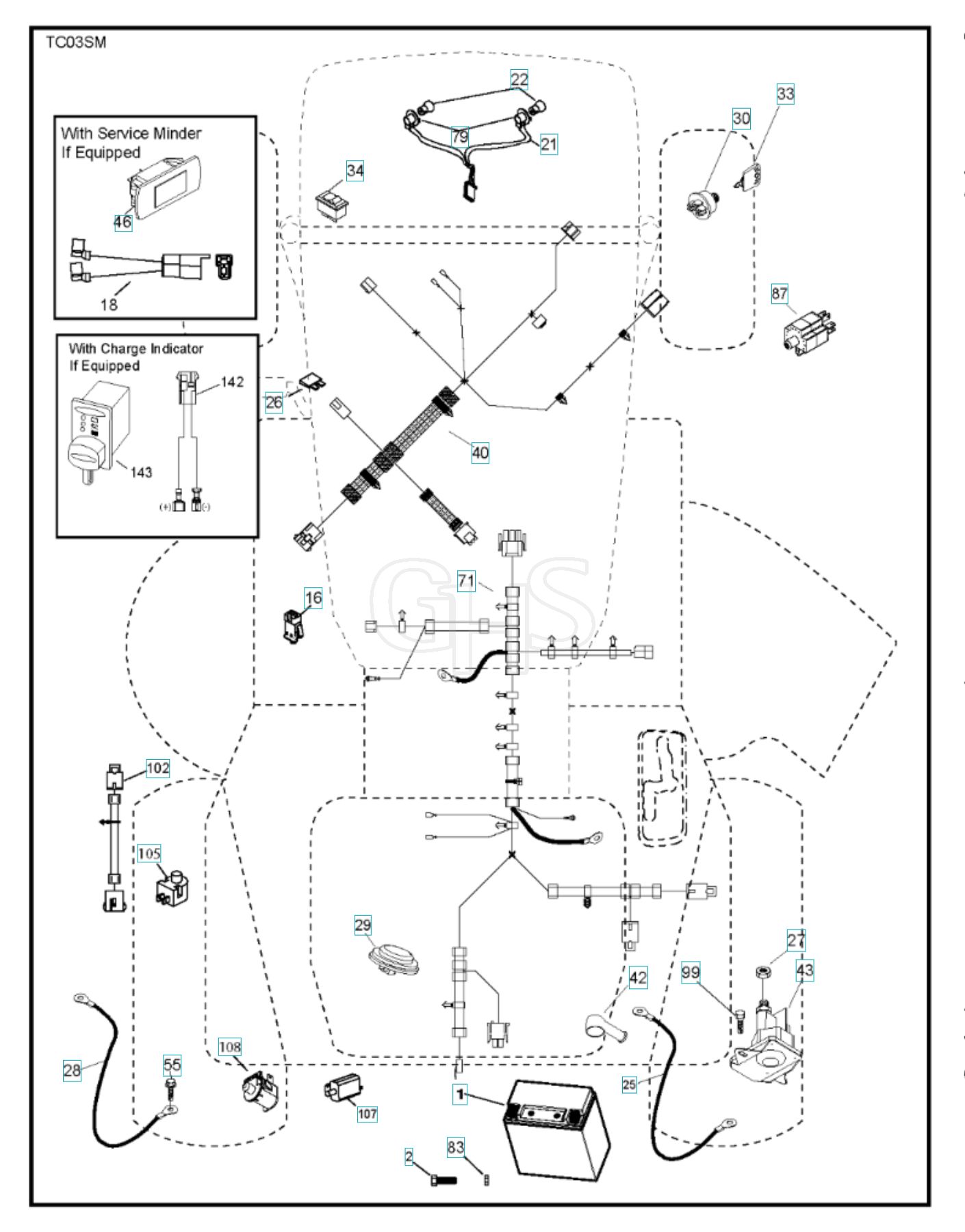

Electrical - Parts Diagram

	Part No.	Details
16	HV532 17 61-38	Micro Switch	Out of stock	£15.20 £12.67
21	HV532 40 02-52	Harness	Out of stock	£26.74 £22.28
22	HV532 00 41-52	Bulb	Out of stock	£4.28 £3.57
25	HV589 32 37-01	Ground Cable	Out of stock	£19.88 £16.57
26	HV532 17 51-58	Fuse	Out of stock	£5.46 £4.55
28	HV589 32 36-01	Ground Cable	Out of stock	£19.88 £16.57
29	HV532 40 15-45	Switch	Out of stock	£23.17 £19.31
30	HV532 19 33-50	Ignition Module	Out of stock	£29.88 £24.90
33	HV532 41 19-35	Key	Out of stock	£10.06 £8.38
34	HV532 11 07-12	Switch	Out of stock	£16.46 £13.72
40	HV585 84 99-01	Harness	Out of stock	£86.52 £72.10
43	HV582 04 28-02	Solenoid	In stock	£21.96 £18.30
71	HV587 26 87-01	Harness	Out of stock	£146.04 £121.70
105	HV532 40 75-68	Switch	Out of stock	£17.03 £14.19
108	HV589 50 03-01	Switch	Out of stock	£21.95 £18.29
