Husqvarna T550R - 2010-1 - Product Complete

Name: Husqvarna T550R - 2010-1 - Product Complete
SKU: t550r_2010_1_product_complete-group
Price: 1.43 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T550R - 2010-1 - Product Complete

Description

Husqvarna T550R

Model Year - 2010-1 - 965896501

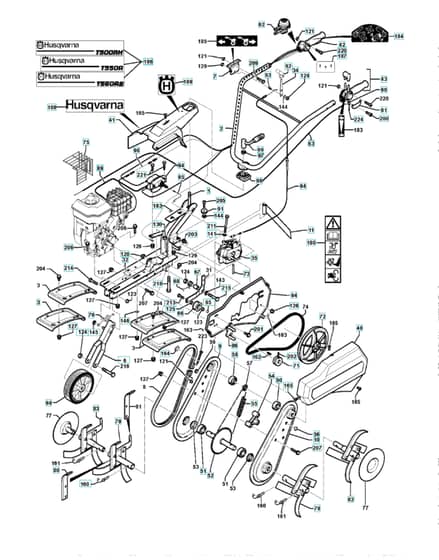

Product Complete - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	HV519 65 34-60 Available to backorder	Support	£19.16 £15.97
9	HV519 65 30-41 Available to backorder	Housing	£24.62 £20.52
10	HV519 65 30-42 Available to backorder	Housing	£24.62 £20.52
40	HV519 65 34-23 Available to backorder	Cover	£52.00 £43.33
41	HV531 00 82-25 Available to backorder	Cover	£63.84 £53.20
42	HV531 00 82-43 Available to backorder	Handle	£67.06 £55.88
50	HV505 54 40-01 Available to backorder	Ball	£4.20 £3.50
51	HV519 65 30-53 Available to backorder	Bearing	£8.02 £6.68
54	HV519 65 30-06 Available to backorder	Spacer	£9.06 £7.55
58	HV531 00 85-46 Available to backorder	Ring	£7.48 £6.23
60	HV531 00 82-46 Available to backorder	Stop	£2.92 £2.43
62	HV531 00 82-48 Available to backorder	Valve	£6.58 £5.48
63	HV531 00 85-83 Available to backorder	Cable	£7.48 £6.23
63	HV531 00 85-84 Available to backorder	Cable	£7.12 £5.93
64	HV519 65 30-55 Available to backorder	Cable	£23.72 £19.77
65	HV519 65 34-09 Available to backorder	Wire	£3.64 £3.03
66	HV519 65 34-57 Available to backorder	Pulley	£17.34 £14.45
68	HV519 65 30-90 Available to backorder	Spring	£2.20 £1.83
70	HV519 65 02-60 Available to backorder	Spring	£2.74 £2.28
72	HV519 65 30-60 Available to backorder	Pulley	£14.60 £12.17
73	HV519 65 30-67 Available to backorder	Shaft	£1.82 £1.52
75	HV531 00 85-82 Available to backorder	Grill	£11.86 £9.88
78	HV531 00 85-20 Available to backorder	Tine	£42.86 £35.72
79	HV531 00 85-21 Available to backorder	Tine	£42.86 £35.72
82	HV531 00 85-22 Available to backorder	Tine	£46.52 £38.77
83	HV531 00 85-23 Available to backorder	Tine	£46.52 £38.77
84	HV531 00 82-49 Available to backorder	Control Cylinder	£21.88 £18.23
86	HV531 00 85-77 Available to backorder	Belt Guide	£7.75 £6.46
89	HV519 65 34-16 Available to backorder	Hose	£3.94 £3.28
91	HV519 65 30-52 Available to backorder	Roller	£2.38 £1.98
92	HV519 65 30-91 Available to backorder	Handle	£4.94 £4.12
94	HV531 00 82-35 Available to backorder	Plate	£11.86 £9.88
95	HV531 00 82-16 Available to backorder	Spacer	£1.72 £1.43
97	HV519 65 34-14 Available to backorder	Spacer	£2.56 £2.13
98	HV519 65 34-15 Available to backorder	Spacer	£15.52 £12.93
121	HV732 26 16-01 Available to backorder	Nut	£1.82 £1.52
124	HV725 25 50-51 Available to backorder	Screw Ehhm	£11.00 £9.17
126	HV519 65 34-32 Available to backorder	Nut	£1.82 £1.52
130	HV531 00 85-78 Available to backorder	Nut	£1.82 £1.52
145	HV519 65 34-62 Available to backorder	Washer	£1.82 £1.52
162	HV519 65 30-21 Available to backorder	Key	£1.82 £1.52
163	HV519 65 34-25 Available to backorder	Clip	£1.82 £1.52
164	HV519 65 34-66 Available to backorder	Retainer Ring	£1.82 £1.52
165	HV519 65 34-26 Available to backorder	Screw	£1.82 £1.52
184	HV519 65 30-85 Available to backorder	Label	£1.82 £1.52
201	HV519 65 34-12 Available to backorder	Screw	£1.82 £1.52
203	HV519 65 34-35 Available to backorder	Screw	£1.82 £1.52
211	HV519 65 30-45 Available to backorder	Screw	£1.82 £1.52
214	HV519 65 30-46 Available to backorder	Screw	£1.82 £1.52
218	HV531 00 82-20 Available to backorder	Bolt	£1.82 £1.52
