Husqvarna T542i XP - 970646814 - Clutch

Name: Husqvarna T542i XP - 970646814 - Clutch
SKU: T542i_XP_970646814_UV_967229_HighResPng-group
Price: 1.03 GBP
Availability: InStock

Part No. T542i_XP_970646814_UV_967229_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

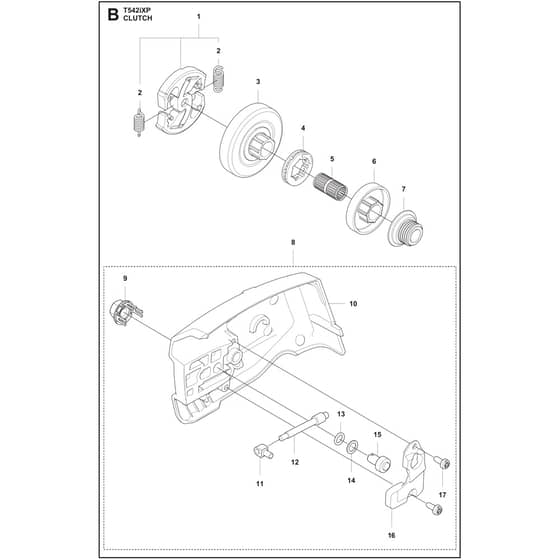

Husqvarna T542i XP - 970646814 - Clutch - Parts Diagram

	Part No.	Details
1	HV546 44 41-01 Available to backorder	Clutch Assy	£49.92 £41.60
2	HV546 24 90-01 Available to backorder	Clutch Spring	£8.17 £6.81
3	HV536 99 90-01 Available to backorder	Clutch Drum Assy	£40.74 £33.95
4	HV501 45 74-02 In stock	Rim Sprocket	£13.88 £11.57
5	HV536 99 53-01 Available to backorder	Needle Bearing	£10.28 £8.57
6	HV536 97 74-01 Available to backorder	Brake Drum	£21.26 £17.72
7	HV536 87 87-01 Available to backorder	Pump Pinion	£6.49 £5.41
8	HV536 88 58-01 Available to backorder	Clutch Cover Assy	£56.28 £46.90
9	HV505 19 73-01 In stock	Nut	£4.48 £3.73
10	HV536 88 59-01 Available to backorder	Clutch Cover	£35.17 £29.31
11	HV588 85 03-03 Available to backorder	Pin	£5.21 £4.34
12	HV537 39 70-01 Available to backorder	Worm Screw	£12.66 £10.55
13	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
14	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
15	HV599 72 41-01 Available to backorder	Worm Wheel	£9.20 £7.67
17	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
