Husqvarna T540XPII - Cylinder Piston

Husqvarna T540XPII - Cylinder Piston

Part No. t540xpii_cylinder_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T540XPII - Cylinder Piston

Husqvarna T540XPII - Cylinder Piston

Description

Husqvarna T540XPII

Model Year -

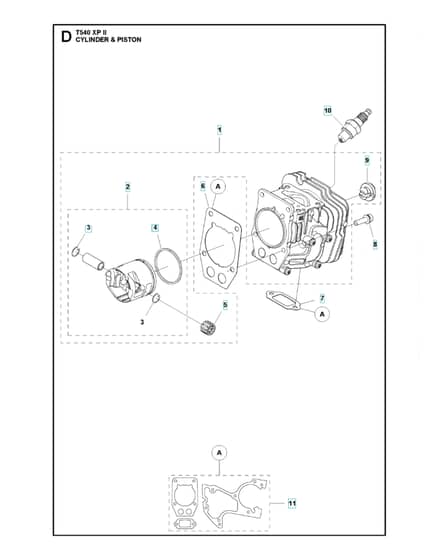

Cylinder Piston - Parts Diagram

Ref.		Img.	Part No.	Details
	3		HV737 44 10-00 Available to backorder	Snap Ring		£0.74 £0.62
	4		HV577 96 05-01 Available to backorder	Piston Ring- Up To S/N 20201400191.		£12.20 £10.17
	5		HV503 25 55-01 Available to backorder	Needle Bearing		£11.16 £9.30
	6		HV505 45 70-01 Available to backorder	Gasket		£5.87 £4.89
	7		HV505 40 83-01 Available to backorder	Gasket		£4.63 £3.86
	8		HV577 40 12-02 Available to backorder	Screw Itxscm		£2.05 £1.71
	9		HV576 35 59-02 Available to backorder	Support		£7.06 £5.88
	11		HV576 66 61-01 Available to backorder	Gasket Kita		£13.61 £11.34

Description

Husqvarna T540XPII

Model Year -

Cylinder Piston - Parts Diagram
