Husqvarna T540XPII - Chain Brake & Clutch Cover

Name: Husqvarna T540XPII - Chain Brake & Clutch Cover
SKU: t540xpii_chain_brake_clutch_cover-group
Price: 0.43 GBP
Availability: InStock

Part No. t540xpii_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T540XPII - Chain Brake & Clutch Cover

Description

Husqvarna T540XPII

Model Year -

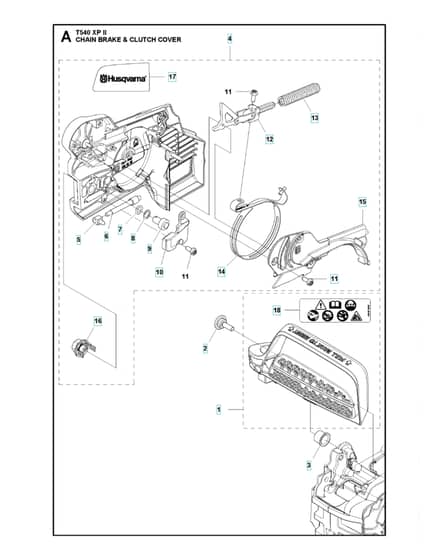

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
1	HV577 82 97-01 Available to backorder	Hand Guard Assy	£32.70 £27.25
2	HV526 83 45-01 Available to backorder	Screw	£1.67 £1.39
3	HV537 20 28-01 Available to backorder	Bushing	£5.90 £4.92
5	HV588 85 03-03 Available to backorder	Pin	£5.21 £4.34
6	HV537 39 70-01 Available to backorder	Worm Screw	£12.66 £10.55
7	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
8	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
9	HV537 07 94-02 Available to backorder	Worm Wheel	£12.84 £10.70
10	HV505 21 45-01 Available to backorder	Cover	£4.67 £3.89
11	HV526 22 20-01 Available to backorder	Screw Citxpant	£0.52 £0.43
12	HV505 19 93-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
13	HV529 27 93-01 Available to backorder	Brake Spring	£4.80 £4.00
14	HV505 56 67-01 Available to backorder	Brake Band Assy	£14.10 £11.75
16	HV505 19 73-01 In stock	Nut	£4.48 £3.73
17	HV515 99 67-01 Available to backorder	Decal	£5.29 £4.41
18	HV586 24 90-01 Available to backorder	Label	£3.84 £3.20
