Husqvarna T540XP - Fuel Tank

Name: Husqvarna T540XP - Fuel Tank
SKU: t540xp_fuel_tank-group
Price: 1.04 GBP
Availability: InStock

Part No. t540xp_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna T540XP

Model Year -

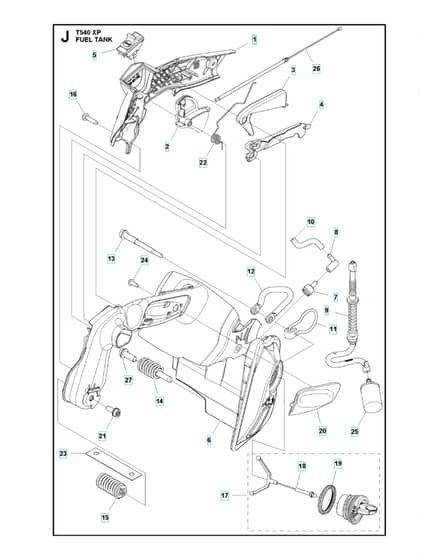

Fuel Tank - Parts Diagram

	Part No.	Details
1	HV506 49 98-01 Available to backorder	Lidmedium	£17.32 £14.43
1	HV506 49 99-01 Available to backorder	Lidlarge	£7.79 £6.49
1	HV506 51 98-01 Available to backorder	Lidx-Large	£19.21 £16.01
2	HV506 49 56-01 Available to backorder	Throttle Control	£5.59 £4.66
3	HV506 49 57-01 Available to backorder	Throttle Lockout	£5.36 £4.47
4	HV522 62 09-02 Available to backorder	Cable Cover	£3.22 £2.68
5	HV522 79 82-01 Available to backorder	Stop Switch	£16.98 £14.15
6	HV588 45 43-01 Available to backorder	Fuel Tank	£117.60 £98.00
8	HV503 45 46-01 Available to backorder	Connection Bend	£3.86 £3.22
9	HV523 05 52-03 Available to backorder	Fuel Hose	£10.60 £8.83
11	HV580 86 00-02 Available to backorder	Loop	£9.37 £7.81
12	HV576 38 13-01 Available to backorder	Loop	£7.79 £6.49
13	HV522 84 79-01 Available to backorder	Screw Itxscfm	£2.56 £2.13
15	HV510 05 84-01 Available to backorder	Antivibration Element	£14.24 £11.87
16	HV526 22 20-02 Available to backorder	Screw Citxpant	£1.79 £1.49
18	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
19	HV505 41 10-01 Available to backorder	Sealing	£3.22 £2.68
20	HV506 49 97-01 Available to backorder	Handle Insert	£4.28 £3.57
21	HV525 75 51-05 In stock	Screw Itxscfm	£1.63 £1.36
22	HV506 49 89-01 Available to backorder	Spring	£1.28 £1.07
23	HV576 94 96-01 Available to backorder	Strap	£2.86 £2.38
24	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
25	HV503 44 32-01 In stock	Fuel Filter	£3.94 £3.28
26	HV506 49 58-01 Available to backorder	Throttle Cable Assy	£9.08 £7.57
27	HV522 75 19-01 Available to backorder	Screw Itxscfm	£2.05 £1.71
