Husqvarna T540XP - Crankcase

Husqvarna T540XP - Crankcase

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T540XP - Crankcase

Husqvarna T540XP - Crankcase

Description

Husqvarna T540XP

Model Year -

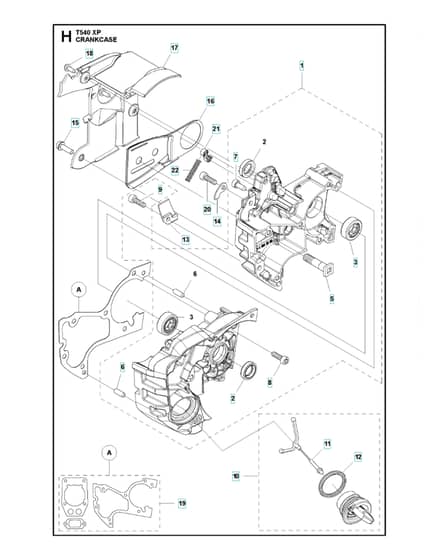

Crankcase - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV574 61 80-01 Available to backorder	Crankcase Assy		£244.56 £203.80
	3		HV505 39 47-01 Available to backorder	Roller Bearing		£20.96 £17.47
	5		HV505 21 73-01 Available to backorder	Bar Bolt		£4.14 £3.45
	6		HV720 13 07-10 Available to backorder	Parallel Pin		£1.28 £1.07
	7		HV525 76 46-01 Available to backorder	Screw Itxsct		£1.82 £1.52
	8		HV525 82 49-01 Available to backorder	Screw Itxscm		£1.82 £1.52
	11		HV503 57 89-01 Available to backorder	Holder		£5.71 £4.76
	12		HV505 41 10-01 Available to backorder	Sealing		£3.28 £2.73
	13		HV505 28 85-01 Available to backorder	Chain Catcher		£6.02 £5.02
	14		HV580 25 04-01 Available to backorder	Washer		£5.04 £4.20
	15		HV525 75 51-01 Available to backorder	Screw Itxscfm		£1.92 £1.60
	16		HV505 52 14-01 Available to backorder	Chain Guide Plate		£5.62 £4.68
	17		HV516 03 45-01 Available to backorder	Cover		£8.74 £7.28
	18		HV526 22 20-01 Available to backorder	Screw Citxpant		£0.52 £0.43
	19		HV576 66 61-01 Available to backorder	Gasket Kita		£13.76 £11.47
	20		HV505 57 41-16 Available to backorder	Screw Itxscm		£2.00 £1.67
	21		HV505 20 12-01 Available to backorder	Catch		£4.14 £3.45
	22		HV503 43 65-01 Available to backorder	Position Spring		£3.48 £2.90

Description

Husqvarna T540XP

Model Year -

Crankcase - Parts Diagram
