Husqvarna T540i XP G - 970568112 - Clutch

Name: Husqvarna T540i XP G - 970568112 - Clutch
SKU: T540i_XP_G_970568112_II_355921_HighResPng-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T540i XP G - 970568112 - Clutch

Description

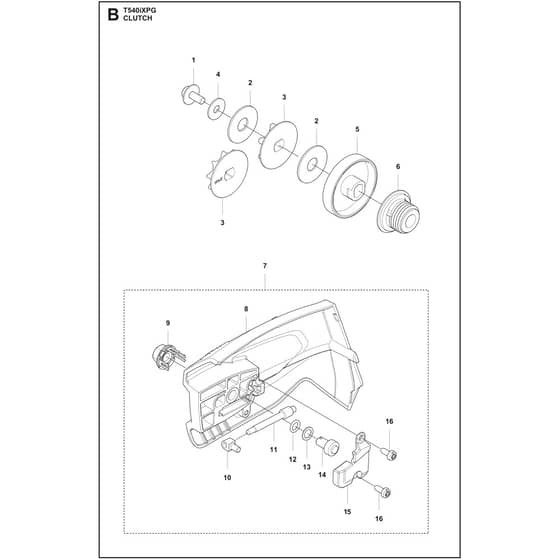

Husqvarna T540i XP G - 970568112 - Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV525 75 51-05 Available to backorder	Screw Itxscfm	£1.63 £1.36
2	HV597 67 01-01 Available to backorder	Disc Spring	£5.93 £4.94
3	HV579 53 45-01 Available to backorder	Spur Sprocket (1.4" - 8T)	£14.40 £12.00
3	HV594 03 52-01 Available to backorder	Spur Sprocket (.325" mini - 7T)	£13.14 £10.95
4	HV503 23 00-35 Available to backorder	Washer	£2.52 £2.10
5	HV593 68 44-01 Available to backorder	Brake Drum	£7.68 £6.40
6	HV593 78 48-01 Available to backorder	Pump Pinion	£6.94 £5.78
7	HV593 05 20-02 Available to backorder	Clutch Cover Assy	£27.85 £23.21
8	HV593 05 17-02 Available to backorder	Clutch Cover	£9.46 £7.88
9	HV505 19 73-01 In stock	Nut	£4.30 £3.58
10	HV588 85 03-01 Available to backorder	Pin	£5.04 £4.20
11	HV537 39 70-01 Available to backorder	Worm Screw	£11.94 £9.95
12	HV740 48 07-02 Available to backorder	O-Ring	£3.84 £3.20
13	HV503 23 00-63 Available to backorder	Washer	£2.34 £1.95
14	HV599 72 41-01 Available to backorder	Worm Wheel	£9.22 £7.68
15	HV505 21 45-01 Available to backorder	Cover	£4.72 £3.93
16	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.22 £1.02
