Husqvarna T540 XP Mark III - 970517912 - Starter

Description

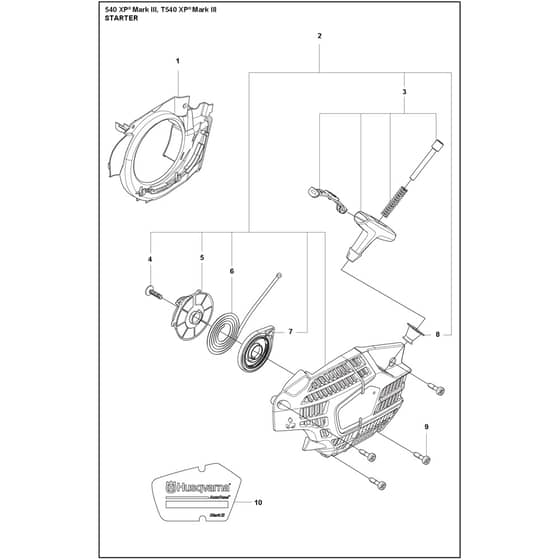

Husqvarna T540 XP Mark III - 970517912 - Starter - Parts Diagram

	Part No.	Details
1	HV599 81 80-01 Available to backorder	Air Conductor	£10.63 £8.86
2	HV599 81 83-01 Available to backorder	Starter Assy	£55.01 £45.84
3	HV584 15 62-01 Available to backorder	Starter Handle Assy	£7.79 £6.49
4	HV529 50 30-02 Available to backorder	Screw	£1.54 £1.28
5	HV599 81 87-01 Available to backorder	Starter Pulley	£10.57 £8.81
6	HV599 81 93-01 Available to backorder	Starter Rope	£4.14 £3.45

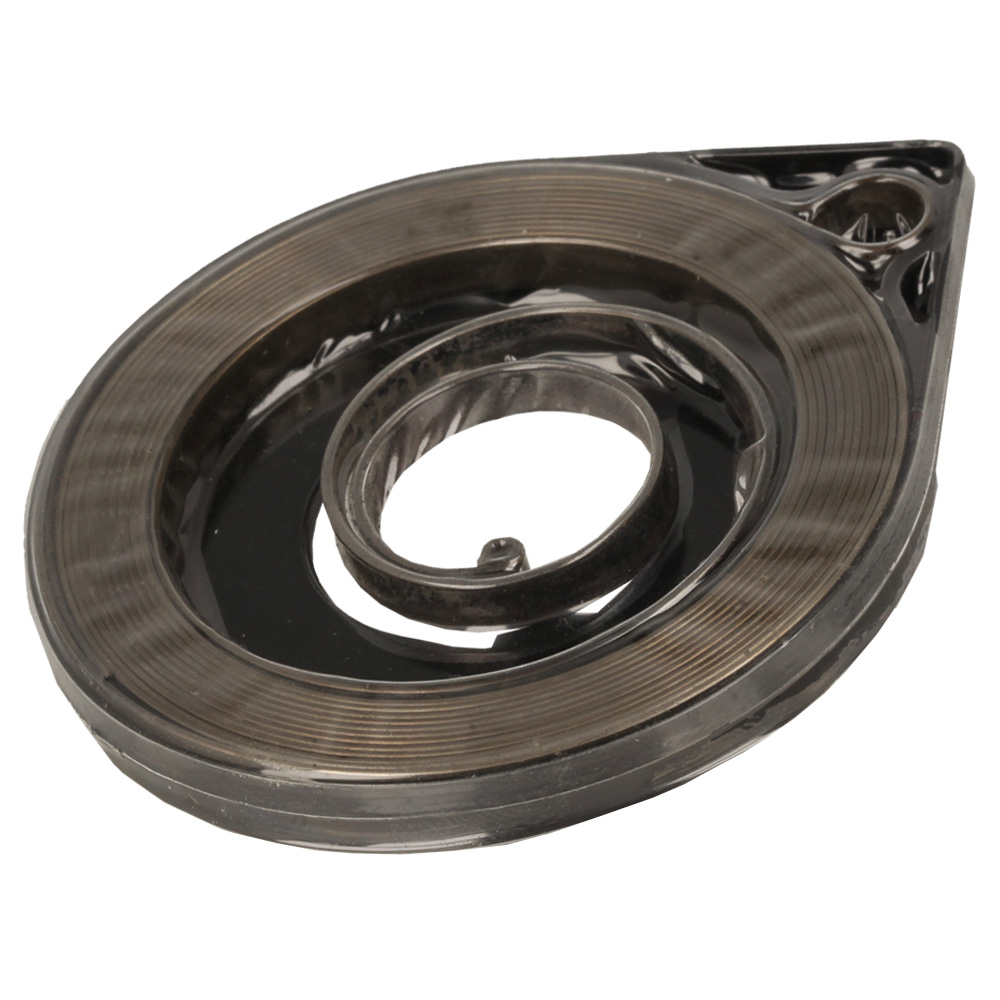

7	HV529 64 53-01 Available to backorder	Spring Cassette Assy	£13.88 £11.57
8	HV537 28 32-01 Available to backorder	Sleeve	£7.60 £6.33

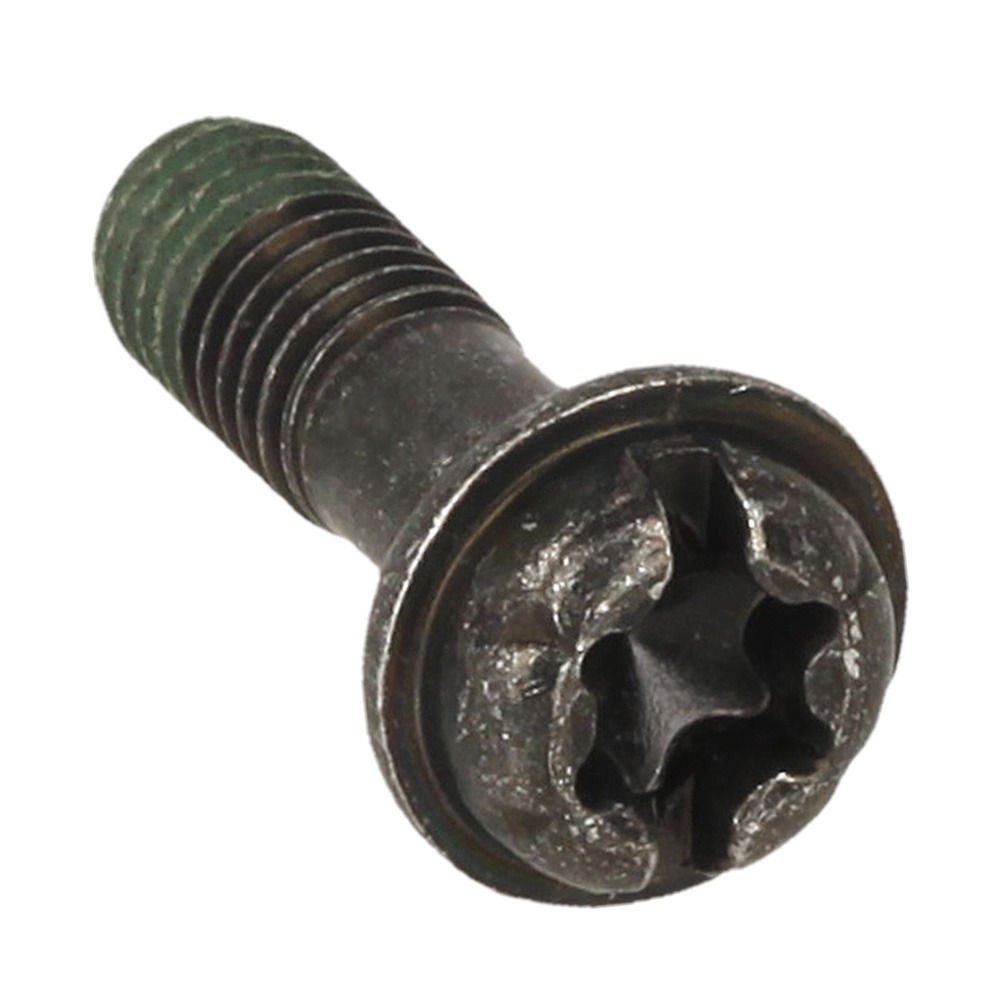

9	HV534 99 59-01 Available to backorder	Screw	£1.45 £1.21
10	HV599 82 14-02 Available to backorder	Decal (T540 XP® Mark III)	£3.89 £3.24
10	HV599 82 14-01 Available to backorder	Decal (540 XP® Mark III)	£3.89 £3.24
