Husqvarna T540 XP Mark III - 970517912 - Fuel Tank

Description

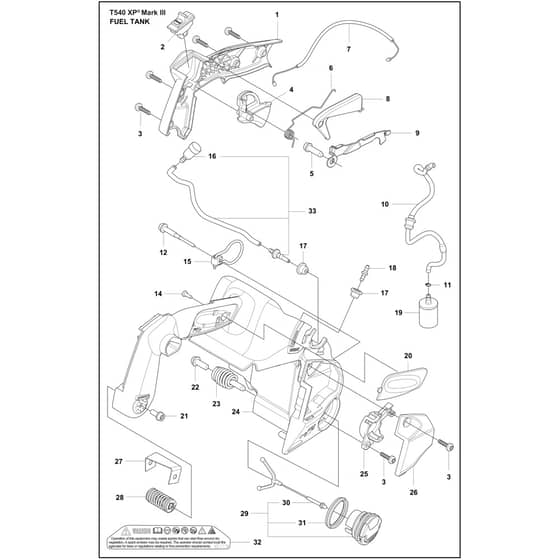

Husqvarna T540 XP Mark III - 970517912 - Fuel Tank - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV529 83 53-01 Available to backorder	Lid	£11.22 £9.35
2	HV522 79 82-01 Available to backorder	Stop Switch	£17.14 £14.28
3	HV521 51 77-01 Available to backorder	Screw	£1.42 £1.18
4	HV506 49 56-01 Available to backorder	Throttle Control	£5.62 £4.68
5	HV525 79 81-02 Available to backorder	Screw Itxscft	£2.06 £1.72
6	HV506 49 89-01 Available to backorder	Spring	£1.44 £1.20
7	HV529 83 52-01 Available to backorder	Throttle Cable Assy	£33.67 £28.06
8	HV506 49 57-01 Available to backorder	Throttle Lockout	£7.12 £5.93
9	HV529 90 43-01 Available to backorder	Cable Cover	£4.14 £3.45
10	HV537 59 43-01 Available to backorder	Fuel Hose Assy	£18.60 £15.50
11	HV506 70 70-01 Available to backorder	Clip	£0.77 £0.64
12	HV522 84 79-01 Available to backorder	Screw Itxscfm	£2.58 £2.15
13	HV576 38 13-01 Available to backorder	Loop	£7.86 £6.55
14	HV525 88 74-02 In stock	Screw Citxpant	£1.32 £1.10
15	HV580 86 00-02 Available to backorder	Loop (Harness)	£9.06 £7.55
16	HV597 86 63-01 Available to backorder	Breather	£13.68 £11.40
17	HV514 20 14-02 Available to backorder	Grommet	£3.76 £3.13
18	HV516 95 03-01 Available to backorder	Joint	£1.58 £1.32
19	HV503 44 32-03 In stock	Fuel Filter (18-40 µm (Blue))	£8.16 £6.80
20	HV506 49 97-01 Available to backorder	Handle Insert	£4.34 £3.62
21	HV525 75 51-05 Available to backorder	Screw Itxscfm	£1.63 £1.36
22	HV522 75 19-01 Available to backorder	Screw Itxscfm	£2.06 £1.72
23	HV534 98 90-01 Available to backorder	Antivibration Element	£11.39 £9.49
24	HV529 81 94-01 Available to backorder	Fuel Tank	£75.59 £62.99
25	HV531 42 53-01 Available to backorder	Bracket	£4.37 £3.64
26	HV529 83 51-01 Available to backorder	Cover	£4.85 £4.04
27	HV576 94 96-01 Available to backorder	Strap	£2.88 £2.40
28	HV534 98 92-02 Available to backorder	Antivibration Element	£14.45 £12.04
29	HV522 62 00-01 Available to backorder	Tank Cap Assy	£9.07 £7.56
30	HV503 57 89-01 Available to backorder	Holder	£5.71 £4.76
31	HV537 21 50-01 Available to backorder	Gasket	£5.36 £4.47
32	HV536 03 09-01 Available to backorder	Decal	£4.97 £4.14
33	HV546 54 37-01 Available to backorder	Breather (Hose with breather and nipple)	£16.96 £14.13
