Husqvarna T535i XP - 970716412 - Crankcase

Name: Husqvarna T535i XP - 970716412 - Crankcase
SKU: T535i_XP_970716412_EJ_742977-group
Price: 1.09 GBP
Availability: InStock

Part No. T535i_XP_970716412_EJ_742977-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T535i XP - 970716412 - Crankcase

Description

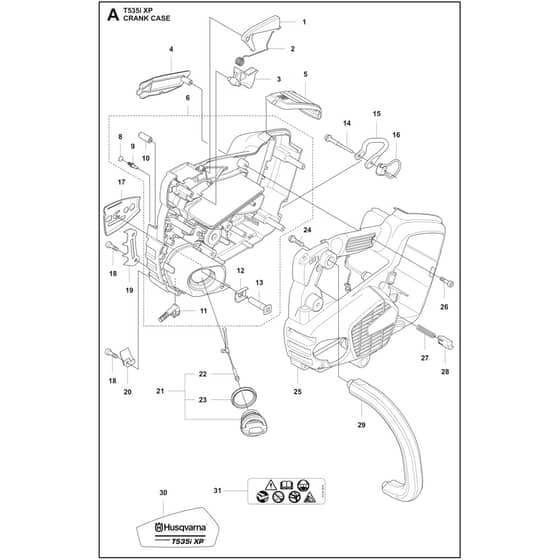

Husqvarna T535i XP - 970716412 - Crankcase - Parts Diagram

	Part No.	Details
1	HV589 27 39-01 Available to backorder	Throttle Lockout	£5.63 £4.69
2	HV544 09 99-01 Available to backorder	Spring	£3.52 £2.93
3	HV577 31 26-01 Available to backorder	Throttle Control	£8.34 £6.95
4	HV576 90 09-01 Available to backorder	Handle Insert	£7.70 £6.42
5	HV576 90 12-01 Available to backorder	Cover	£7.70 £6.42
6	HV581 05 38-02 Available to backorder	Crankcase Assy (For keypad. please refer to ELECTRICAL page in the IPL)	£135.24 £112.70
8	HV537 40 35-01 Available to backorder	Filter	£4.50 £3.75
9	HV530 02 61-19 In stock	Check Valve	£6.40 £5.33
10	HV501 62 33-01 Available to backorder	Spring Pin	£1.67 £1.39
11	HV598 74 92-01 Available to backorder	Oil Screen	£5.44 £4.53
12	HV576 99 97-01 Available to backorder	Stiffening Plate	£4.12 £3.43
13	HV503 87 54-01 Available to backorder	Bar Bolt	£5.32 £4.43
14	HV522 84 79-01 Available to backorder	Screw Itxscfm	£2.56 £2.13
15	HV576 38 13-01 Available to backorder	Loop	£7.79 £6.49
16	HV580 86 00-02 Available to backorder	Loop	£9.37 £7.81
17	HV576 90 14-01 Available to backorder	Chain Guide	£5.78 £4.82
18	HV503 21 74-16 Available to backorder	Screw Ihsct	£1.82 £1.52
19	HV577 28 66-01 Available to backorder	Spike	£8.45 £7.04
20	HV505 28 85-01 Available to backorder	Chain Catcher	£5.96 £4.97
21	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
21	HV522 62 00-01-1 Available to backorder	Tank Cap Assy	£7.00 £5.83
22	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
23	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
24	HV503 21 68-72 Available to backorder	Screw Ihsct	£2.05 £1.71
25	HV576 90 10-02 Available to backorder	Crankcase	£65.88 £54.90
26	HV503 21 66-74 Available to backorder	Screw Ihsct	£1.31 £1.09
27	HV585 48 00-01 Available to backorder	Spring	£3.73 £3.11
28	HV577 99 66-01 Available to backorder	Push Button	£3.32 £2.77
29	HV576 90 11-01 Available to backorder	Front Handle	£34.66 £28.88
30	HV578 22 90-02 Available to backorder	Decal	£3.06 £2.55
31	HV586 24 90-01 Available to backorder	Label	£3.84 £3.20
