Husqvarna T535i XP - 970716412 - Chain Brake

Name: Husqvarna T535i XP - 970716412 - Chain Brake
SKU: T535i_XP_970716412_OB_295270_HighResPng-group
Price: 1.07 GBP
Availability: InStock

Part No. T535i_XP_970716412_OB_295270_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T535i XP - 970716412 - Chain Brake

Description

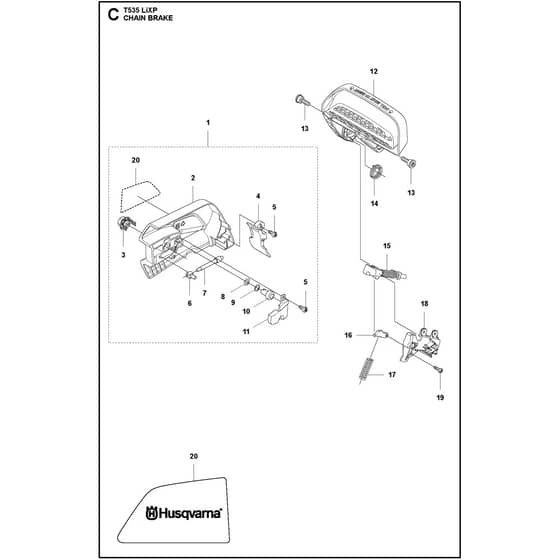

Husqvarna T535i XP - 970716412 - Chain Brake - Parts Diagram

	Part No.	Details
1	HV576 90 56-03 Available to backorder	Clutch Cover Assy	£51.17 £42.64
2	HV576 90 57-01 Available to backorder	Clutch Cover	£21.16 £17.63
3	HV505 19 73-01 In stock	Nut	£4.48 £3.73
4	HV577 72 21-01 Available to backorder	Chip Guard	£7.06 £5.88
5	HV503 21 70-72 Available to backorder	Screw Ccrpant	£1.32 £1.10
6	HV588 85 03-03 Available to backorder	Nut	£5.21 £4.34
7	HV537 39 70-01 Available to backorder	Worm Screw	£12.66 £10.55
8	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
9	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
10	HV599 72 41-01 Available to backorder	Worm Wheel	£9.20 £7.67
11	HV505 21 45-01 Available to backorder	Cover	£4.67 £3.89
12	HV576 90 38-01 Available to backorder	Hand Guard	£25.27 £21.06
13	HV503 89 30-01 Available to backorder	Screw	£2.60 £2.17
14	HV577 64 98-01 Available to backorder	Torsion Spring	£3.73 £3.11
15	HV577 54 95-01 Available to backorder	Shaft Assy	£10.90 £9.08
16	HV577 27 20-01 Available to backorder	Catch	£4.86 £4.05
17	HV576 90 46-01 Available to backorder	Spring	£3.59 £2.99
18	HV577 36 56-01 Available to backorder	Bracket	£7.06 £5.88
19	HV525 88 74-01 Available to backorder	Screw Ccrpant	£1.28 £1.07
20	HV578 22 89-01 Available to backorder	Decal	£3.22 £2.68
