Husqvarna T500R - Product Complete

Name: Husqvarna T500R - Product Complete
SKU: t500r_product_complete-group
Price: 1.49 GBP
Availability: InStock

Part No. t500r_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna T500R

Model Year - - 1999-06

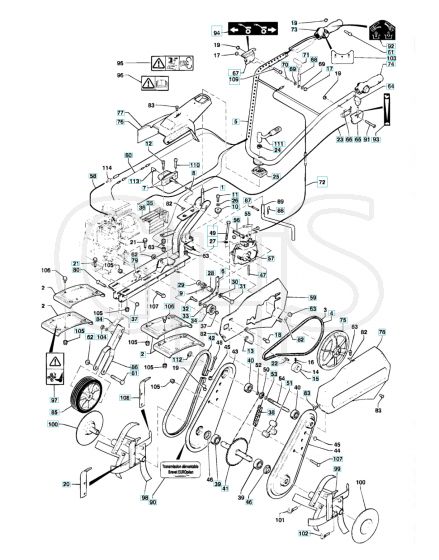

Product Complete - Parts Diagram

	Part No.	Details
4	HV519 65 30-59 Available to backorder	Belt	£21.70 £18.08
6	HV519 65 34-07 Available to backorder	Leverassy Including	£3.26 £2.72
8	HV519 65 34-09 Available to backorder	Wire	£3.60 £3.00
9	HV519 65 30-90 Available to backorder	Spring	£2.17 £1.81
10	HV519 65 30-52 Available to backorder	Roller	£2.36 £1.97
18	HV519 65 34-12 Available to backorder	Screw	£1.79 £1.49
20	HV519 65 34-47 In stock	Blade	Was £8.76 £7.30 Special Price £6.04 £5.03
22	HV519 65 30-21 Available to backorder	Key	£1.79 £1.49
23	HV519 65 31-02 Available to backorder	Cable	£5.59 £4.66
24	HV519 65 34-14 Available to backorder	Spacer	£2.54 £2.12
25	HV519 65 34-15 Available to backorder	Spacer	£15.36 £12.80
30	HV519 65 34-53 Available to backorder	Washer	£1.79 £1.49
34	HV519 65 34-57 Available to backorder	Pulley	£17.17 £14.31
37	HV519 65 34-58 Available to backorder	Nut	£1.79 £1.49
39	HV519 65 30-53 Available to backorder	Bearing	£7.96 £6.63
42	HV519 65 30-43 In stock	Ring	Was £22.20 £18.50 Special Price £12.29 £10.24
46	HV519 65 30-72 Available to backorder	Spacing Sleeve	£4.69 £3.91
47	HV519 65 30-67 Available to backorder	Shaft	£1.79 £1.49
49	HV519 65 30-45 Available to backorder	Screw	£1.79 £1.49
51	HV519 65 30-06 Available to backorder	Spacer	£8.98 £7.48
58	HV519 65 34-16 Available to backorder	Hose	£3.88 £3.23
61	HV732 25 20-01 Available to backorder	Hexagon Locking Nut	£4.36 £3.63
62	HV725 25 50-51 Available to backorder	Screw Ehhm	£10.90 £9.08
63	HV519 65 34-32 Available to backorder	Nut	£1.79 £1.49
65	HV519 65 34-59 Available to backorder	Throttle Trigger	£11.75 £9.79
66	HV519 64 94-71 Available to backorder	Throttle Lever	£2.45 £2.04
71	HV519 65 30-91 Available to backorder	Handle	£4.86 £4.05
72	HV519 65 30-55 Available to backorder	Cable	£23.48 £19.57
75	HV519 65 30-60 Available to backorder	Pulley	£14.46 £12.05
78	HV519 65 34-23 Available to backorder	Cover	£51.52 £42.93
80	HV519 65 30-46 Available to backorder	Screw	£1.79 £1.49
81	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£4.84 £4.03
82	HV519 65 34-25 Available to backorder	Clip	£1.79 £1.49
83	HV519 65 34-26 Available to backorder	Screw	£1.79 £1.49
84	HV519 65 02-60 Available to backorder	Spring	£2.71 £2.26
86	HV519 65 34-60 Available to backorder	Support	£18.96 £15.80
88	HV519 65 12-20 Available to backorder	Pin Retaining Screw	£1.84 £1.53
91	HV519 65 34-61 Available to backorder	Screw	£1.79 £1.49
92	HV519 65 30-85 Available to backorder	Label	£1.79 £1.49
98	HV519 65 30-28 Available to backorder	Tine	£77.76 £64.80
99	HV519 65 30-29 Available to backorder	Tine	£77.76 £64.80
104	HV519 65 34-62 Available to backorder	Washer	£1.79 £1.49
106	HV519 65 34-33 Available to backorder	Bolt	£1.79 £1.49
108	HV519 65 34-48 Available to backorder	Blade	£7.52 £6.27
112	HV519 65 34-66 Available to backorder	Retainer Ring	£1.79 £1.49
