Husqvarna T500 - Product Complete

Name: Husqvarna T500 - Product Complete
SKU: t500_product_complete-group
Price: 1.49 GBP
Availability: InStock

Part No. t500_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna T500

Model Year - - 2000-03

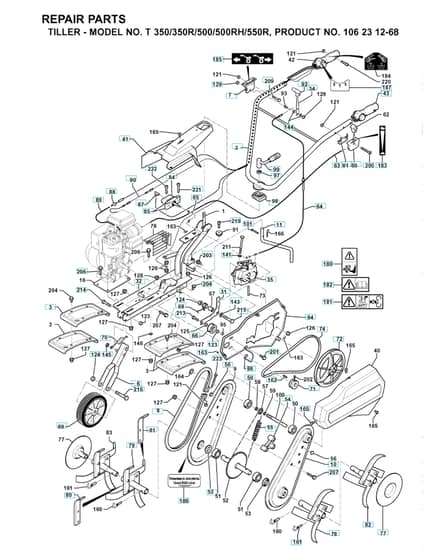

Product Complete - Parts Diagram

	Part No.	Details
-1	HV531 00 82-13 Available to backorder	Blade	£39.76 £33.13
0	HV531 00 82-25 Available to backorder	Cover	£61.08 £50.90
1	HV519 65 30-58 Available to backorder	Belt	£21.14 £17.62
2	HV519 65 31-02 Available to backorder	Cable	£5.59 £4.66
6	HV519 65 34-60 Available to backorder	Support	£18.96 £15.80
7	HV531 00 82-22 Available to backorder	Holder	£18.17 £15.14
8	HV519 65 30-43 In stock	Ring	Was £22.20 £18.50 Special Price £12.29 £10.24
10	HV519 65 30-42 Available to backorder	Housing	£24.38 £20.32
31	HV519 65 34-07 Available to backorder	Leverassy Including	£3.26 £2.72
53	HV519 65 30-72 Available to backorder	Spacing Sleeve	£4.69 £3.91
54	HV519 65 30-06 Available to backorder	Spacer	£8.98 £7.48
60	HV519 65 34-59 Available to backorder	Throttle Trigger	£11.75 £9.79
61	HV519 64 94-71 Available to backorder	Throttle Lever	£2.45 £2.04
63	HV519 00 41-68 Available to backorder	Wire	£7.24 £6.03
64	HV519 65 30-55 Available to backorder	Cable	£23.48 £19.57
65	HV519 65 34-09 Available to backorder	Wire	£3.60 £3.00
66	HV519 65 34-57 Available to backorder	Pulley	£17.17 £14.31
68	HV519 65 30-90 Available to backorder	Spring	£2.17 £1.81
70	HV519 65 02-60 Available to backorder	Spring	£2.71 £2.26
72	HV519 65 30-60 Available to backorder	Pulley	£14.46 £12.05
74	HV519 65 30-59 Available to backorder	Belt	£21.70 £18.08
77	HV519 65 33-62 Available to backorder	Cover	£11.58 £9.65
78	HV519 65 30-28 Available to backorder	Tine	£77.76 £64.80
79	HV519 65 30-29 Available to backorder	Tine	£77.76 £64.80
80	HV519 65 34-47 In stock	Blade	Was £8.76 £7.30 Special Price £6.04 £5.03
81	HV519 65 34-48 Available to backorder	Blade	£7.52 £6.27
82	HV531 00 82-14 In stock	Tine	£49.68 £41.40
89	HV519 65 34-16 Available to backorder	Hose	£3.88 £3.23
92	HV519 65 30-91 Available to backorder	Handle	£4.86 £4.05
94	HV531 00 82-35 Available to backorder	Plate	£11.75 £9.79
97	HV519 65 34-14 Available to backorder	Spacer	£2.54 £2.12
98	HV519 65 34-15 Available to backorder	Spacer	£15.36 £12.80
123	HV519 65 34-58 Available to backorder	Nut	£1.79 £1.49
124	HV725 25 50-51 Available to backorder	Screw Ehhm	£10.90 £9.08
143	HV519 65 34-53 Available to backorder	Washer	£1.79 £1.49
145	HV519 65 34-62 Available to backorder	Washer	£1.79 £1.49
162	HV519 65 30-21 Available to backorder	Key	£1.79 £1.49
163	HV519 65 34-25 Available to backorder	Clip	£1.79 £1.49
165	HV519 65 34-26 Available to backorder	Screw	£1.79 £1.49
200	HV519 65 34-61 Available to backorder	Screw	£1.79 £1.49
201	HV519 65 34-12 Available to backorder	Screw	£1.79 £1.49
203	HV519 65 34-35 Available to backorder	Screw	£1.79 £1.49
204	HV531 00 82-02 Available to backorder	Bolt	£1.79 £1.49
214	HV519 65 30-46 Available to backorder	Screw	£1.79 £1.49
216	HV519 65 31-31 Available to backorder	Screw	£1.79 £1.49
