Husqvarna T435 - Fuel Tank

Husqvarna T435 - Fuel Tank

Part No. t435_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna T435 - Fuel Tank

Husqvarna T435 - Fuel Tank

Description

Husqvarna T435

Model Year -

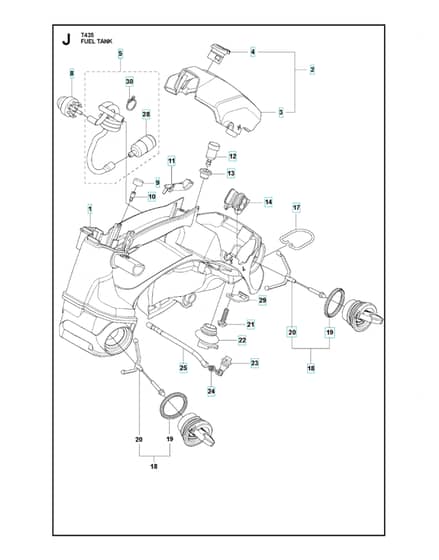

Fuel Tank - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV522 01 77-01 Available to backorder	Cover		£18.60 £15.50
	3		HV522 01 78-01 Available to backorder	Cover		£16.87 £14.06
	4		HV522 01 79-01 Available to backorder	Knob		£6.40 £5.33

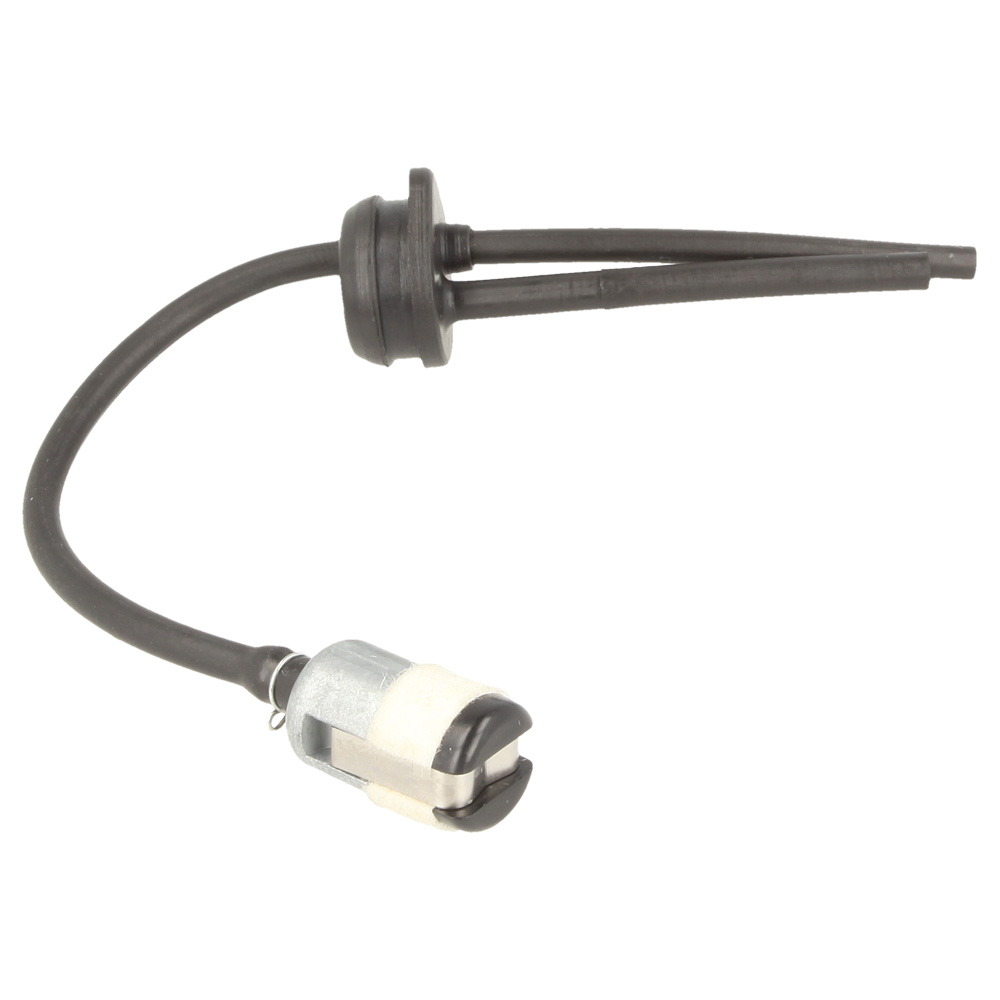

	5		HV522 64 76-02 Available to backorder	Fuel Hose		£19.08 £15.90
	8		HV503 93 66-01 In stock	Purge		£15.11 £12.59
	9		HV516 94 81-01 Available to backorder	Seal		£3.50 £2.92
	12		HV513 75 15-01 Available to backorder	Breather		£18.38 £15.32
	14		HV579 60 65-01 Available to backorder	Guide		£6.89 £5.74
	17		HV522 01 94-01 Available to backorder	Eyelet		£10.37 £8.64
	18		HV577 87 86-03 In stock	Tank Cap Assy		£9.60 £8.00
	19		HV589 24 13-01 Available to backorder	Gasket		£5.32 £4.43
	20		HV503 57 89-01 Available to backorder	Holder		£5.42 £4.52
	24		HV516 95 03-01 Available to backorder	Joint		£1.56 £1.30
	28		HV575 96 07-01 In stock	Filter		£8.75 £7.29
	30		HV506 70 70-01 Available to backorder	Clip		£0.77 £0.64

Description

Husqvarna T435

Model Year -

Fuel Tank - Parts Diagram
