Husqvarna T350R - Product Complete

Name: Husqvarna T350R - Product Complete
SKU: t350r_product_complete-group
Price: 1.44 GBP
Availability: InStock

Part No. t350r_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna T350R

Model Year - - 2000-03

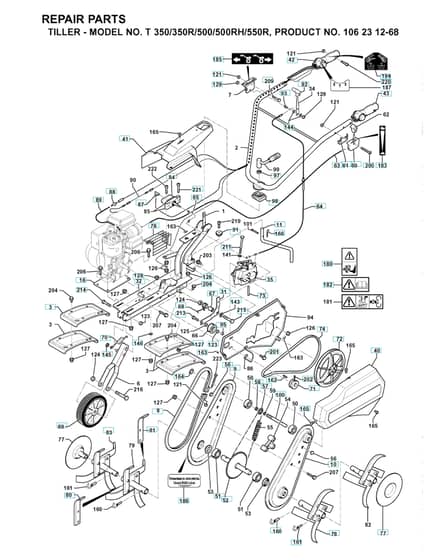

Product Complete - Parts Diagram

	Part No.	Details
-1	HV531 00 82-11 Available to backorder	Blade	£39.76 £33.13
0	HV531 00 82-25 Available to backorder	Cover	£61.08 £50.90
8	HV519 65 30-43 In stock	Ring	Was £22.20 £18.50 Special Price £12.29 £10.24
9	HV519 65 30-41 Available to backorder	Housing	£24.38 £20.32
10	HV519 65 30-42 Available to backorder	Housing	£24.38 £20.32
31	HV519 65 34-07 Available to backorder	Leverassy Including	£3.26 £2.72
40	HV519 65 34-23 Available to backorder	Cover	£51.52 £42.93
51	HV519 65 30-53 Available to backorder	Bearing	£7.96 £6.63
57	HV519 65 30-57 Available to backorder	Pinion	£4.33 £3.61
60	HV519 65 34-59 Available to backorder	Throttle Trigger	£11.75 £9.79
61	HV519 64 94-71 Available to backorder	Throttle Lever	£2.45 £2.04
63	HV519 00 41-68 Available to backorder	Wire	£7.24 £6.03
64	HV519 65 30-55 Available to backorder	Cable	£23.48 £19.57
65	HV519 65 34-09 Available to backorder	Wire	£3.60 £3.00
68	HV519 65 30-90 Available to backorder	Spring	£2.17 £1.81
70	HV519 65 02-60 Available to backorder	Spring	£2.71 £2.26
72	HV519 65 30-60 Available to backorder	Pulley	£14.46 £12.05
73	HV519 65 30-67 Available to backorder	Shaft	£1.79 £1.49
74	HV519 65 30-59 Available to backorder	Belt	£21.70 £18.08
77	HV519 65 33-62 Available to backorder	Cover	£11.58 £9.65
78	HV519 65 30-28 Available to backorder	Tine	£77.76 £64.80
80	HV519 65 34-47 In stock	Blade	Was £8.76 £7.30 Special Price £6.04 £5.03
81	HV519 65 34-48 Available to backorder	Blade	£7.52 £6.27
83	HV531 00 82-15 Available to backorder	Tine	£41.39 £34.49
89	HV519 65 34-16 Available to backorder	Hose	£3.88 £3.23
91	HV519 65 30-52 Available to backorder	Roller	£2.36 £1.97
92	HV519 65 30-91 Available to backorder	Handle	£4.86 £4.05
95	HV531 00 82-16 Available to backorder	Spacer	£1.73 £1.44
97	HV519 65 34-14 Available to backorder	Spacer	£2.54 £2.12
98	HV519 65 34-15 Available to backorder	Spacer	£15.36 £12.80
121	HV732 26 16-01 Available to backorder	Nut	£1.79 £1.49
123	HV519 65 34-58 Available to backorder	Nut	£1.79 £1.49
126	HV519 65 34-32 Available to backorder	Nut	£1.79 £1.49
143	HV519 65 34-53 Available to backorder	Washer	£1.79 £1.49
145	HV519 65 34-62 Available to backorder	Washer	£1.79 £1.49
162	HV519 65 30-21 Available to backorder	Key	£1.79 £1.49
163	HV519 65 34-25 Available to backorder	Clip	£1.79 £1.49
164	HV519 65 34-66 Available to backorder	Retainer Ring	£1.79 £1.49
165	HV519 65 34-26 Available to backorder	Screw	£1.79 £1.49
166	HV519 65 12-20 Available to backorder	Pin Retaining Screw	£1.84 £1.53
184	HV519 65 30-85 Available to backorder	Label	£1.79 £1.49
200	HV519 65 34-61 Available to backorder	Screw	£1.79 £1.49
201	HV519 65 34-12 Available to backorder	Screw	£1.79 £1.49
204	HV531 00 82-02 Available to backorder	Bolt	£1.79 £1.49
211	HV519 65 30-45 Available to backorder	Screw	£1.79 £1.49
214	HV519 65 30-46 Available to backorder	Screw	£1.79 £1.49
