Husqvarna T25RS - Repair Parts

Name: Husqvarna T25RS - Repair Parts
SKU: t25rs_repair_parts-group
Price: 1.43 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna T25RS

Model Year - - 2011-03

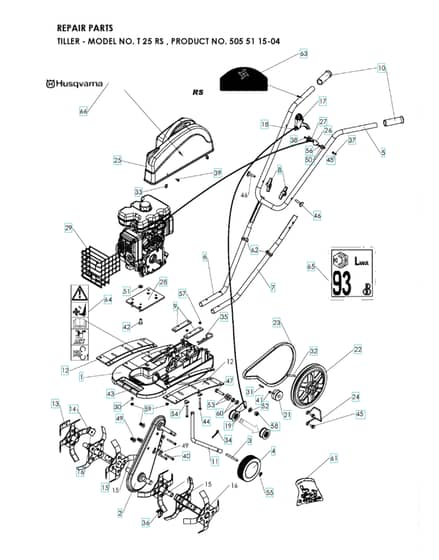

Repair Parts - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV519 65 34-57 Available to backorder	Pulley	£17.34 £14.45
2	HV531 00 84-31 Available to backorder	Gearbox	£189.00 £157.50
6	HV531 00 84-33 Available to backorder	Handle	£18.78 £15.65
8	HV531 00 84-62 Available to backorder	Wing Nut	£1.82 £1.52
11	HV531 00 84-37 Available to backorder	Tail-Skid	£17.00 £14.17
13	HV531 00 84-59 Available to backorder	Blade	£2.56 £2.13
14	HV531 00 85-63 Available to backorder	Blade	£3.46 £2.88
17	HV501 96 34-01 Available to backorder	Lever	£10.96 £9.13
18	HV501 96 35-01 Available to backorder	Cable	£10.96 £9.13
21	HV531 00 84-56 Available to backorder	Pulley	£14.60 £12.17
22	HV519 65 30-60 Available to backorder	Pulley	£14.60 £12.17
23	HV522 53 04-01 Available to backorder	Belt	£16.51 £13.76
25	HV531 00 84-44 Available to backorder	Cover	£22.80 £19.00
26	HV544 20 39-01 Available to backorder	Support	£15.52 £12.93
32	HV519 65 30-67 Available to backorder	Shaft	£1.82 £1.52
33	HV519 65 34-25 Available to backorder	Clip	£1.82 £1.52
34	HV519 65 12-20 Available to backorder	Pin Retaining Screw	£1.78 £1.48
37	HV501 99 14-01 Available to backorder	Screw	£1.82 £1.52
39	HV519 65 34-26 Available to backorder	Screw	£1.82 £1.52
41	HV728 69 23-00 Available to backorder	Screw	£1.82 £1.52
43	HV519 65 34-35 Available to backorder	Screw	£1.82 £1.52
44	HV519 65 31-13 Available to backorder	Screw	£1.82 £1.52
45	HV531 00 82-02 Available to backorder	Bolt	£1.82 £1.52
46	HV531 00 84-73 Available to backorder	Screw	£1.72 £1.43
48	HV531 00 85-39 Available to backorder	Washer	£1.82 £1.52
49	HV531 00 83-90 Available to backorder	Washer	£1.82 £1.52
52	HV734 11 72-01 Available to backorder	Washer	£2.02 £1.68
53	HV531 00 84-66 Available to backorder	Washer	£1.82 £1.52
57	HV732 26 16-01 Available to backorder	Nut	£1.82 £1.52
58	HV519 65 34-58 Available to backorder	Nut	£1.82 £1.52
59	HV519 65 34-32 Available to backorder	Nut	£1.82 £1.52
63	HV519 65 30-85 Available to backorder	Label	£1.82 £1.52
