Husqvarna RIDER PRO 18 - Chassis & Frame

Description

Husqvarna RIDER PRO 18

Model Year -

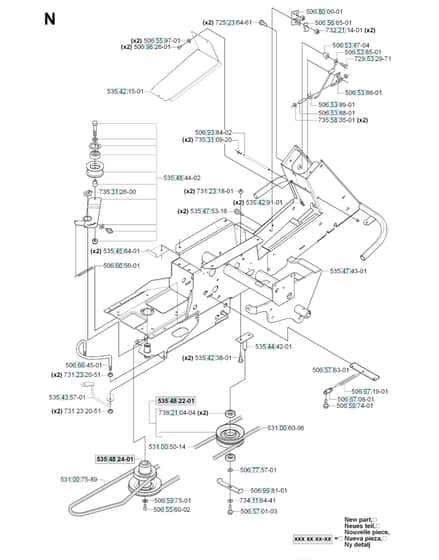

Chassis & Frame - Parts Diagram

	Part No.	Details
506	HV506 53 85-01 Available to backorder	Locking Arm	£12.18 £10.15
506	HV506 53 88-01 Available to backorder	Shaft	£4.94 £4.12
506	HV506 55 97-01 Available to backorder	Washer	£2.30 £1.92
506	HV506 57 63-01 Available to backorder	Spring Retainer	£14.71 £12.26
506	HV506 66 45-01 Available to backorder	Belt Guide	£18.60 £15.50
506	HV506 67 19-01 Available to backorder	Spring	£34.60 £28.83
506	HV506 93 84-02 Available to backorder	Shaft	£21.40 £17.83
506	HV506 53 86-01 Available to backorder	Bracket	£10.26 £8.55
506	HV506 53 89-01 Available to backorder	Spring	£3.84 £3.20
506	HV506 56 65-01 Available to backorder	Clip	£0.90 £0.75
506	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
506	HV506 66 56-01 In stock	Spring	£14.35 £11.96
506	HV506 77 57-01 In stock	Washer	£5.75 £4.79
506	HV506 98 26-01 Available to backorder	Screw	£2.56 £2.13
506	HV506 53 87-04 Available to backorder	Control Button	£2.47 £2.06
506	HV506 55 60-02 Available to backorder	Screw Unc	£7.82 £6.52
506	HV506 57 01-03 Available to backorder	Screw Ehhfm	£5.02 £4.18
506	HV506 59 75-01 In stock	Washer	£9.79 £8.16
506	HV506 67 08-01 Available to backorder	Link	£10.26 £8.55
506	HV506 80 00-01 Available to backorder	Bracket	£10.26 £8.55
535	HV535 43 57-01 Available to backorder	Hose Clip	£69.60 £58.00
535	HV535 48 22-01 In stock	Pulley	£88.76 £73.97
535	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.02 £4.18
535	HV535 44 42-01 Available to backorder	Mellanlagring Kpl	£80.88 £67.40
535	HV535 48 24-01 Available to backorder	Pulley	£104.76 £87.30
535	HV535 42 91-01 Available to backorder	Spring Nut	£1.28 £1.07
535	HV535 47 53-16 Available to backorder	Screw Ehhfm	£2.05 £1.71
535	HV535 48 44-02 Available to backorder	Belt Tensioner Assy	£60.77 £50.64
535	HV535 42 15-01 Available to backorder	Lock Golvtunnel	£106.68 £88.90
725	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
731	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.55 £1.29
734	HV734 11 64-41 In stock	Washer	£3.25 £2.71
735	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
735	HV735 58 35-01 Available to backorder	Washer	£2.30 £1.92
735	HV735 31 09-20 Available to backorder	E-Clip	£0.77 £0.64
738	HV738 21 04-04 Available to backorder	Ball Bearing	£8.71 £7.26
