Husqvarna RIDER BATTERY - Mower Lift & Deck Lift

Description

Husqvarna RIDER BATTERY

Model Year -

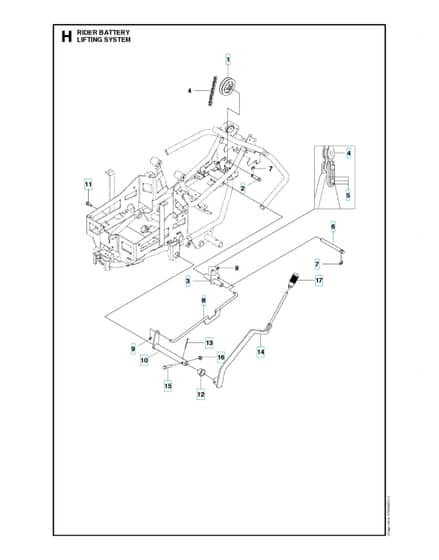

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
1	HV506 90 56-01 Available to backorder	Offset Pulley	£22.45 £18.71
3	HV578 28 79-01 Available to backorder	Lever Assy	£19.09 £15.91
4	HV506 55 46-13 Available to backorder	Chain	£18.54 £15.45
5	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
7	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
8	HV578 27 09-01 Available to backorder	Rod	£33.78 £28.15
9	HV735 31 12-20 Available to backorder	E-Clip	£0.78 £0.65
10	HV578 24 54-01 Available to backorder	Lever Assy	£34.40 £28.67
11	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
13	HV721 61 87-01 Available to backorder	Split Pin	£0.77 £0.64
14	HV522 50 83-02 Available to backorder	Lever	£52.56 £43.80
15	HV725 25 00-51 Available to backorder	Screw Ehhm	£7.70 £6.42
16	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
