Husqvarna RIDER BATTERY

Model Year -

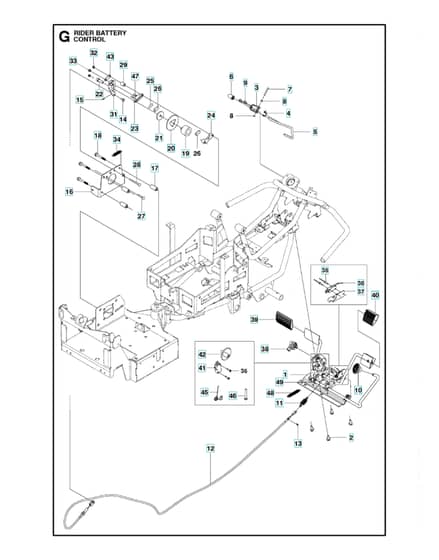

Controls - Parts Diagram

	Part No.	Details
-1	HV580 33 60-01 Available to backorder	Stud Screwfor 966800801. 967249701	£6.28 £5.23
1	HV579 00 76-01 Available to backorder	Pedal Plate	£128.28 £106.90
2	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
3	HV506 53 86-01 Available to backorder	Bracket	£10.26 £8.55
4	HV506 53 89-01 Available to backorder	Spring	£3.84 £3.20
5	HV523 34 01-01 Available to backorder	Lever	£8.34 £6.95
7	HV506 53 88-01 Available to backorder	Shaft	£4.94 £4.12
8	HV735 58 35-01 Available to backorder	Washer	£2.30 £1.92
9	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
10	HV586 72 74-01 Available to backorder	Knobfor 967187001	£14.36 £11.97
11	HV586 34 02-01 Available to backorder	Springfor 967187001	£9.62 £8.02
11	HV506 91 91-01 Available to backorder	Brake Springfor 966800801. 967249701	£7.06 £5.88
12	HV578 36 06-01 Available to backorder	Brake Wire	£55.12 £45.93
13	HV735 31 09-20 Available to backorder	E-Clip	£0.77 £0.64
15	HV721 61 52-01 Available to backorder	Split Pin	£0.77 £0.64
16	HV578 36 04-01 Available to backorder	Bracket	£39.10 £32.58
17	HV578 36 05-01 Available to backorder	Distance	£9.62 £8.02
18	HV506 57 01-08 Available to backorder	Screw Ehhfm	£1.79 £1.49
19	HV578 36 03-01 Available to backorder	Hub	£33.97 £28.31
20	HV578 36 01-01 Available to backorder	Discfor 966800801. 967249701	£6.59 £5.49
21	HV539 10 65-04 Available to backorder	Washer	£6.40 £5.33
22	HV502 23 36-01 Available to backorder	Screw Ihscm	£7.06 £5.88
23	HV580 33 56-01 Available to backorder	Caliperfor 966800801. 967249701	£16.66 £13.88
24	HV578 49 77-01 Available to backorder	Hub Cap	£4.94 £4.12
25	HV578 49 75-01 Available to backorder	Plate	£2.58 £2.15
26	HV578 49 76-01 Available to backorder	Brake	£14.78 £12.32
27	HV727 63 78-01 Available to backorder	Screw Rsqm	£3.59 £2.99
28	HV727 63 83-01 Available to backorder	Screw Rsqm	£5.02 £4.18
29	HV578 49 71-01 Available to backorder	Spacer	£5.70 £4.75
31	HV578 49 70-01 Available to backorder	Arm	£19.51 £16.26
32	HV732 21 16-01 Available to backorder	Lock Nut	£1.79 £1.49
33	HV578 49 66-01 Available to backorder	Locking Nut	£1.90 £1.58
34	HV506 53 56-03 Available to backorder	Draw Spring	£6.00 £5.00
35	HV544 44 07-01 Available to backorder	Rivet	£2.94 £2.45
36	HV574 31 61-01 Available to backorder	Switch	£17.59 £14.66
37	HV544 41 57-01 Available to backorder	Bracket	£7.70 £6.42
38	HV577 92 69-01 Available to backorder	Sensor	£203.28 £169.40
40	HV586 96 64-01 Available to backorder	Pedalfor 967187001	£14.10 £11.75
42	HV577 87 56-01 Available to backorder	Driver	£37.81 £31.51
43	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
43	HV578 49 68-01 Available to backorder	Plate	£4.97 £4.14
45	HV584 81 94-01 Available to backorder	Spring	£3.46 £2.88
46	HV725 24 62-51 Available to backorder	Screw Ehhmfor 967187001	£6.29 £5.24
47	HV578 49 74-01 Available to backorder	Penfor 967187001	£3.46 £2.88
