Husqvarna RIDER 18 AWD - Mower Lift & Deck Lift

Description

Husqvarna RIDER 18 AWD

Model Year -

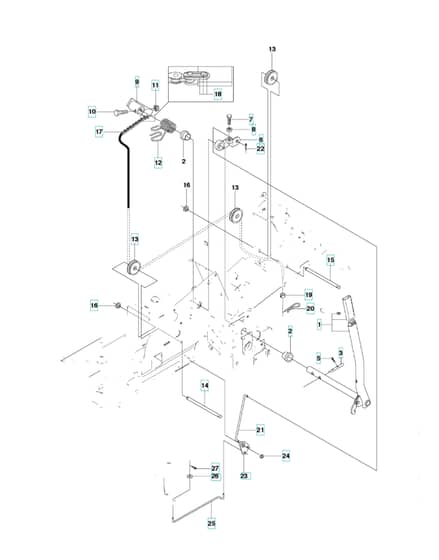

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
3	HV525 40 66-01 Available to backorder	Pen	£11.74 £9.78
6	HV506 78 43-01 Available to backorder	Link Assy	£12.40 £10.33
7	HV725 24 97-51 Available to backorder	Screw	£7.06 £5.88
8	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
9	HV544 43 36-01 Available to backorder	Lifting Arm	£23.72 £19.77
10	HV725 25 42-51 Available to backorder	Screw Ehhm	£8.29 £6.91
11	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£4.84 £4.03
12	HV506 91 68-01 Available to backorder	Spring	£8.34 £6.95
13	HV506 90 56-01 Available to backorder	Offset Pulley	£22.45 £18.71
14	HV506 90 57-01 Available to backorder	Shaft	£18.88 £15.73
15	HV506 90 57-02 Available to backorder	Shaft	£20.50 £17.08
16	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
17	HV506 55 46-07 Available to backorder	Chain	£50.20 £41.83
18	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
20	HV506 96 66-01 Available to backorder	Hair Pin Cotter	£1.15 £0.96
23	HV544 37 86-01 Available to backorder	Link	£10.43 £8.69
24	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
25	HV544 44 88-01 Available to backorder	Connection Rod	£9.79 £8.16
26	HV734 11 64-41 In stock	Washer	£3.25 £2.71
27	HV721 61 83-01 Available to backorder	Split Pin	£0.72 £0.60
