RIDER 175 AWD - Ride On Mower Parts
Husqvarna RIDER 175 AWD - Transmission 4

Husqvarna RIDER 175 AWD - Transmission 4

Part No. rider_175_awd_transmission_4-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 175 AWD - Transmission 4

Husqvarna RIDER 175 AWD - Transmission 4

Description

Husqvarna RIDER 175 AWD

Model Year -

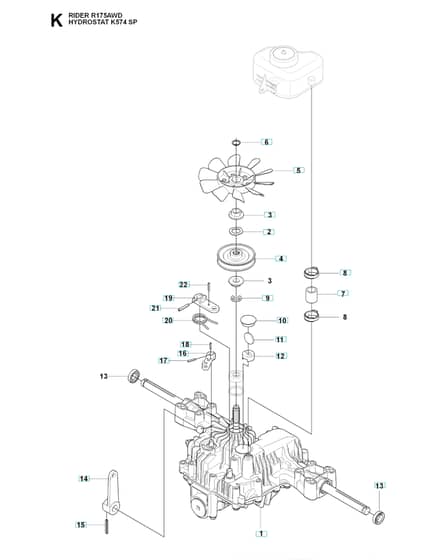

Transmission 4 - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV506 98 65-01 Available to backorder	Spring Washer		£4.86 £4.05
	3		HV506 98 66-01 Available to backorder	Distance		£10.26 £8.55
	4		HV502 45 19-01 Available to backorder	Pulley		£51.91 £43.26
	5		HV506 98 68-01 Available to backorder	Fan		£43.08 £35.90
	6		HV735 31 15-00 Available to backorder	Circlip		£2.30 £1.92
	7		HV502 45 16-01 Available to backorder	Tube		£16.22 £13.52
	9		HV582 16 29-01 Available to backorder	Clip		£3.97 £3.31
	10		HV535 40 28-32 Available to backorder	Plug		£13.46 £11.22
	12		HV535 40 28-30 Available to backorder	Holder		£18.17 £15.14
	13		TT187T0134280 In stock	Sealing		£12.06 £10.05
	15		HV535 40 28-09 Available to backorder	Pin Retaining Screw		£4.69 £3.91
	16		HV535 40 28-17 Available to backorder	Lever		£16.68 £13.90
	17		HV535 40 28-16 Available to backorder	Pin Retaining Screw		£3.95 £3.29
	18		HV535 40 28-33 Available to backorder	Pin Retaining Screw		£3.58 £2.98
	21		HV535 40 28-40 Available to backorder	Pin Retaining Screw		£4.69 £3.91
	22		HV535 40 28-41 Available to backorder	Pin Retaining Screw		£3.84 £3.20

Description

Husqvarna RIDER 175 AWD

Model Year -

Transmission 4 - Parts Diagram
