Husqvarna RIDER 16C - Engine 2

Husqvarna RIDER 16C - Engine 2

Part No. rider_16c_engine_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 16C - Engine 2

Husqvarna RIDER 16C - Engine 2

Description

Husqvarna RIDER 16C

Model Year -

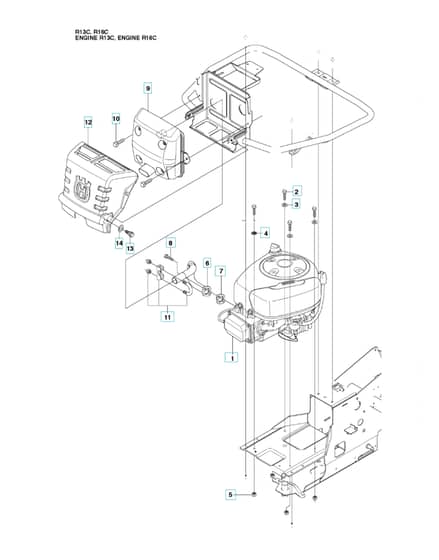

Engine 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV725 24 57-51 Available to backorder	Screw		£5.51 £4.59
	3		HV734 11 64-01 Available to backorder	Washer		£2.29 £1.91
	4		HV735 21 64-00 Available to backorder	Lockwasher		£3.32 £2.77
	5		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	6		HV535 50 06-02 Available to backorder	Exhaust Pipe Assy		£41.48 £34.57
	7		HV506 91 45-01 Available to backorder	Gasket		£7.03 £5.86
	8		HV506 55 63-01 Available to backorder	Screw Unc		£3.59 £2.99
	9		HV544 33 57-01 Available to backorder	Muffler Assy		£315.48 £262.90
	10		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.56 £2.13
	11		HV506 66 84-01 Available to backorder	Clamp Assy		£1.79 £1.49
	12		HV544 24 83-01 Available to backorder	Heat Protector		£75.60 £63.00
	13		HV506 59 74-01 In stock	Screw Ehhfm		£6.12 £5.10
	14		HV506 83 94-01 Available to backorder	Spring Washer		£2.86 £2.38

Description

Husqvarna RIDER 16C

Model Year -

Engine 2 - Parts Diagram
