Husqvarna RIDER 16 H - Transmission

Name: Husqvarna RIDER 16 H - Transmission
SKU: rider_16_h_transmission-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna RIDER 16 H

Model Year -

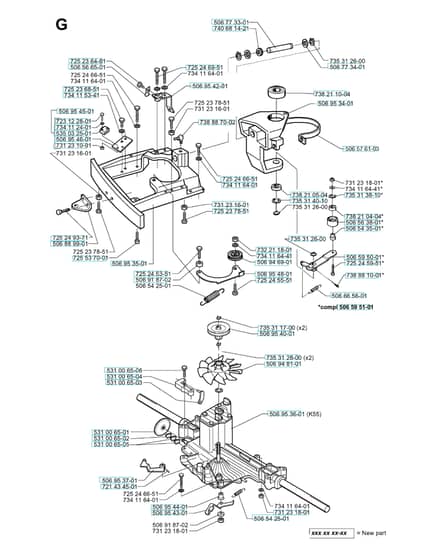

Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 88 99-01 Available to backorder	Hitch	£19.40 £16.17
506	HV506 95 48-01 Available to backorder	Belt Tensioner	£18.76 £15.63
506	HV506 56 65-01 Available to backorder	Clip	£0.92 £0.77
506	HV506 77 33-01 Available to backorder	Swing Axle	£50.86 £42.38
506	HV506 94 69-01 Available to backorder	Pulley	£37.20 £31.00
506	HV506 54 25-01 In stock	Spring	£6.96 £5.80
506	HV544 42 73-01 Available to backorder	Styrkrans	£42.26 £35.22
506	HV506 77 34-01 Available to backorder	Washer	£4.04 £3.37
506	HV506 94 81-01 Available to backorder	Fan	£16.32 £13.60
506	HV506 56 38-01 Available to backorder	Tension Roller	£26.54 £22.12
506	HV506 66 56-01 Available to backorder	Spring	£14.52 £12.10
531	HV531 00 65-03 Available to backorder	Brake Lever	£50.46 £42.05
531	HV531 00 65-01 Available to backorder	Disc	£39.46 £32.88
531	HV531 00 65-04 Available to backorder	Holder	£35.38 £29.48
531	HV531 00 65-02 Available to backorder	Brake Pad	£5.38 £4.48
725	HV725 23 68-51 Available to backorder	Screw	£2.28 £1.90
725	HV725 24 55-51 Available to backorder	Screw	£3.62 £3.02
725	HV725 24 69-51 Available to backorder	Screw Ehhm	£5.82 £4.85
725	HV725 23 78-51 Available to backorder	Screw Ehhm	£3.62 £3.02
725	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.34 £5.28
725	HV725 24 93-71 Available to backorder	Screw Ehhm	£6.94 £5.78
725	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
725	HV725 24 53-51 Available to backorder	Screw Ehhm	£4.54 £3.78
725	HV725 24 66-51 Available to backorder	Screw	£7.12 £5.93
731	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.50 £1.25
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.24 £2.70
731	HV731 23 10-01 Available to backorder	Hexagon Nut	£1.48 £1.23
732	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
734	HV734 11 24-01 Available to backorder	Washer	£2.84 £2.37
734	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
734	HV734 11 53-41 Available to backorder	Washer	£2.58 £2.15
734	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
735	HV735 31 28-00 Available to backorder	Circlip	£1.04 £0.87
735	HV735 31 17-00 In stock	Circlip	£0.76 £0.63
735	HV735 31 38-10 Available to backorder	Circlip	£0.92 £0.77
735	HV735 31 26-00 Available to backorder	Circlip	£0.76 £0.63
735	HV735 31 40-10 Available to backorder	Circlip	£5.82 £4.85
738	HV738 21 10-04 Available to backorder	Ball Bearing	£9.96 £8.30
738	HV738 21 04-04 Available to backorder	Ball Bearing	£8.42 £7.02
738	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
738	HV738 21 05-04 Available to backorder	Ball Bearing	£9.96 £8.30
740	HV740 68 14-21 Available to backorder	V-Ring	£4.96 £4.13
