Husqvarna RIDER 16 H - Controls

Name: Husqvarna RIDER 16 H - Controls
SKU: rider_16_h_controls-group
Price: 0.6 GBP
Availability: InStock

Part No. rider_16_h_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna RIDER 16 H

Model Year -

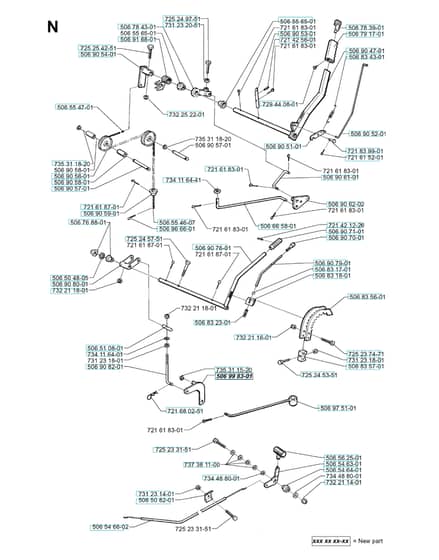

Controls - Parts Diagram

	Part No.	Details
506	HV506 51 08-01 Available to backorder	Nipple	£12.97 £10.81
506	HV506 54 66-02 In stock	Throttle Cable Assy	£29.36 £24.47
506	HV506 56 25-01 Available to backorder	Handle	£8.45 £7.04
506	HV506 79 17-01 Available to backorder	Handle	£10.37 £8.64
506	HV506 83 23-01 Available to backorder	Spring	£3.59 £2.99
506	HV506 90 56-01 Available to backorder	Offset Pulley	£22.45 £18.71
506	HV506 90 59-01 Available to backorder	Chain Stop	£20.77 £17.31
506	HV506 90 71-01 Available to backorder	Handle	£19.43 £16.19
506	HV506 90 82-01 In stock	Height Rod	£11.86 £9.88
506	HV506 97 51-01 Available to backorder	Connector	£15.38 £12.82
506	HV506 50 48-05 Available to backorder	Washer	£3.06 £2.55
506	HV506 54 63-01 Available to backorder	Lever Throttle Contr	£12.18 £10.15
506	HV506 55 46-07 Available to backorder	Chain	£50.20 £41.83
506	HV506 78 39-01 Available to backorder	Button	£12.32 £10.27
506	HV506 83 17-01 Available to backorder	End Fitting	£10.37 £8.64
506	HV506 83 43-01 Available to backorder	Spring	£3.84 £3.20
506	HV506 90 57-01 Available to backorder	Shaft	£18.88 £15.73
506	HV506 90 61-01 Available to backorder	Connection Rod	£15.38 £12.82
506	HV506 90 76-01 Available to backorder	Lifting Lever Assy	£107.16 £89.30
506	HV506 91 68-01 Available to backorder	Spring	£8.34 £6.95
506	HV506 99 83-01 Available to backorder	Link Assy	£19.88 £16.57
506	HV506 50 82-01 Available to backorder	Clip	£1.02 £0.85
506	HV506 54 64-01 Available to backorder	Bushing	£6.29 £5.24
506	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
506	HV506 78 43-01 Available to backorder	Link Assy	£12.40 £10.33
506	HV506 83 18-01 Available to backorder	Lock	£29.84 £24.87
506	HV506 83 56-01 Available to backorder	Höjdsegment	£48.01 £40.01
506	HV506 90 58-01 Available to backorder	Tube Sleeve	£13.46 £11.22
506	HV506 90 70-01 Available to backorder	Knob	£7.09 £5.91
506	HV506 90 79-01 Available to backorder	Push Rod	£11.66 £9.72
506	HV506 96 66-01 Available to backorder	Hair Pin Cotter	£1.15 £0.96
721	HV721 42 12-26 Available to backorder	Spring Pin	£1.28 £1.07
721	HV721 61 87-01 Available to backorder	Split Pin	£0.77 £0.64
721	HV721 61 52-01 Available to backorder	Split Pin	£0.77 £0.64
721	HV721 68 02-51 Available to backorder	Spring Cotter	£0.91 £0.76
721	HV721 61 83-01 Available to backorder	Split Pin	£0.72 £0.60
725	HV725 23 74-71 Available to backorder	Screw Ehhm	£2.83 £2.36
725	HV725 24 97-51 Available to backorder	Screw	£7.06 £5.88
725	HV725 24 53-51 Available to backorder	Screw Ehhm	£4.46 £3.72
725	HV725 25 42-51 Available to backorder	Screw Ehhm	£8.29 £6.91
725	HV725 23 31-51 Available to backorder	Screw	£1.79 £1.49
725	HV725 24 57-51 Available to backorder	Screw	£5.51 £4.59
729	HV729 44 08-01 Available to backorder	Screw Slcsrt	£1.56 £1.30
731	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
731	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.55 £1.29
732	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£4.84 £4.03
732	HV732 21 16-01 Available to backorder	Lock Nut	£1.79 £1.49
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
734	HV734 48 80-01 Available to backorder	Washer	£2.30 £1.92
734	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
734	HV734 11 64-41 In stock	Washer	£3.25 £2.71
735	HV735 31 15-20 Available to backorder	E-Clip	£0.77 £0.64
735	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
737	HV737 38 11-00 Available to backorder	Disc Spring	£3.46 £2.88
