Husqvarna RIDER 16 H - 90cm Cutting Deck

Description

Husqvarna RIDER 16 H

Model Year -

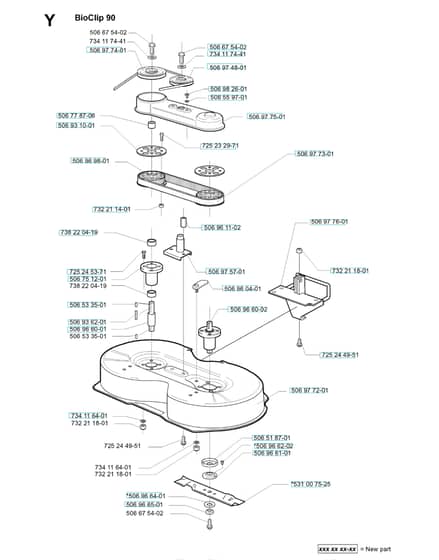

90cm Cutting Deck - Parts Diagram

	Part No.	Details
506	HV506 98 26-01 Available to backorder	Screw	£2.56 £2.13
506	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
506	HV506 77 87-06 Available to backorder	Spacer	£13.46 £11.22
506	HV506 96 04-01 Available to backorder	Eccentric	£28.56 £23.80
506	HV506 96 61-01 Available to backorder	Blade	£28.20 £23.50
506	HV506 97 48-01 Available to backorder	Pulley	£58.80 £49.00
506	HV506 55 97-01 Available to backorder	Washer	£2.30 £1.92
506	HV506 93 10-01 Available to backorder	Flange	£34.28 £28.57
506	HV506 96 60-01 Available to backorder	Shaft	£29.47 £24.56
506	HV506 96 64-01 Available to backorder	Cup	£18.60 £15.50
506	HV506 97 74-01 Available to backorder	Pulley	£115.08 £95.90
506	HV506 51 87-01 In stock	Dust Cover	£6.16 £5.13
506	HV506 67 54-02 In stock	Screw Ehhfm	£7.49 £6.24
506	HV506 93 62-01 Available to backorder	Wedge	£3.91 £3.26
506	HV506 96 60-02 Available to backorder	Shaft	£43.49 £36.24
506	HV506 96 65-01 Available to backorder	Washer	£9.62 £8.02
531	HV531 00 75-25 Available to backorder	Blade	£38.92 £32.43
725	HV725 24 49-51 Available to backorder	Screw	£3.32 £2.77
725	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
725	HV725 23 29-71 Available to backorder	Screw Ehhm	£2.05 £1.71
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.55 £1.29
734	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
734	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
738	HV738 22 04-19 Available to backorder	Ball Bearing	£8.71 £7.26
