Husqvarna RIDER 16

Model Year -

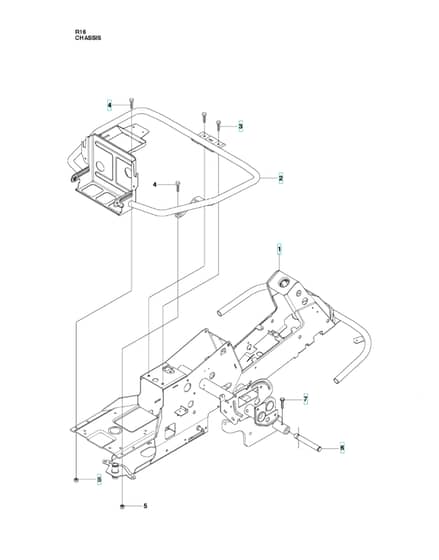

Chassis & Frame - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV544 84 23-01 Available to backorder	Frame		£700.43 £583.69
	2		HV544 24 45-01 Available to backorder	Engine Frame		£174.24 £145.20
	3		HV506 57 01-03 Available to backorder	Screw Ehhfm		£5.02 £4.18
	4		HV725 24 51-71 Available to backorder	Screw Ehhm		£4.50 £3.75
	5		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	6		HV535 47 08-01 Available to backorder	Wheel Axle		£48.48 £40.40
	7		HV725 24 59-61 Available to backorder	Screw Ehhft		£6.29 £5.24

Description

Husqvarna RIDER 16

Model Year -

Chassis & Frame - Parts Diagram
