Husqvarna RIDER 15T - Chassis & Frame

Husqvarna RIDER 15T - Chassis & Frame

Description

Husqvarna RIDER 15T

Model Year -

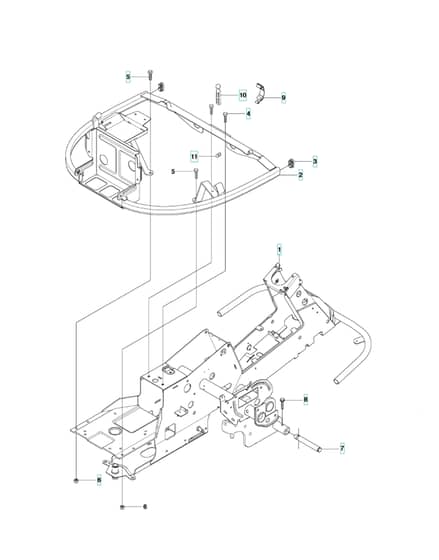

Chassis & Frame - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV502 65 55-01 Available to backorder	Frame		£650.40 £542.00
	4		HV506 57 01-03 Available to backorder	Screw Ehhfm		£5.04 £4.20
	5		HV725 24 51-71 Available to backorder	Screw Ehhm		£4.54 £3.78
	6		HV732 21 18-01 Available to backorder	Lock Nut		£2.40 £2.00
	7		HV535 47 08-01 Available to backorder	Wheel Axle		£48.94 £40.78
	8		HV725 24 59-61 Available to backorder	Screw Ehhft		£6.34 £5.28
	9		HV595 30 30-03 In stock	Snap Locking		£4.44 £3.70
	10		HV506 59 95-01 In stock	Button		Was £6.40 £5.33 Special Price £4.62 £3.85
	11		HV506 59 96-01 Available to backorder	Gummistropp		£9.72 £8.10

Description

Husqvarna RIDER 15T

Model Year -

Chassis & Frame - Parts Diagram
