Husqvarna RIDER 15T AWD

Model Year -

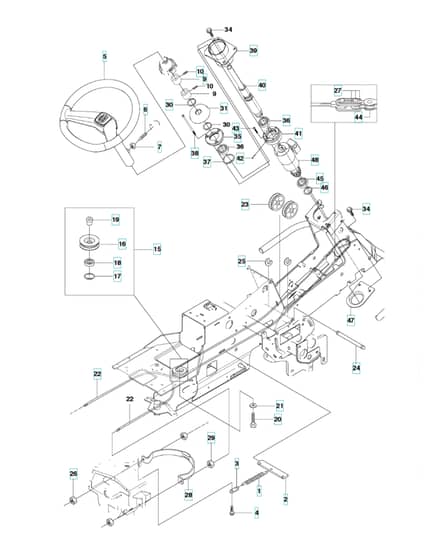

Steering 2 - Parts Diagram

	Part No.	Details
1	HV506 67 19-01 Available to backorder	Spring	£34.60 £28.83
2	HV506 57 63-01 Available to backorder	Spring Retainer	£14.71 £12.26
3	HV506 67 08-01 Available to backorder	Link	£10.26 £8.55
4	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
6	HV728 74 55-05 Available to backorder	Screw Ihsetm	£2.83 £2.36
7	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
10	HV728 84 43-05 Available to backorder	Screw Ihsetm	£1.56 £1.30
15	HV506 50 09-03 Available to backorder	Barring Wheel	£82.56 £68.80
18	HV738 22 04-19 Available to backorder	Ball Bearing	£8.71 £7.26
19	HV506 50 08-02 Available to backorder	Bushing	£11.54 £9.62
20	HV506 67 54-03 Available to backorder	Screw Ehhfm	£6.29 £5.24
21	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
23	HV506 52 24-01 Available to backorder	Starter Pulley	£10.57 £8.81
25	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
26	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
27	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
29	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
30	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
31	HV535 42 37-01 Available to backorder	Bellows	£9.62 £8.02
34	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
35	HV535 42 36-01 Available to backorder	Bearing Housing	£25.64 £21.37
36	HV738 21 05-04 Available to backorder	Ball Bearing	£9.85 £8.21
37	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
38	HV535 43 28-01 Available to backorder	Screw Ihscm	£7.06 £5.88
40	HV535 42 19-01 Available to backorder	Steering Rod	£89.40 £74.50
41	HV535 42 35-01 Available to backorder	Bearing Housing	£42.30 £35.25
42	HV721 43 35-01 Available to backorder	Spring Pin	£1.40 £1.17
44	HV506 55 46-10 Available to backorder	Chain	£23.53 £19.61
45	HV535 42 78-01 Available to backorder	Ball Bearing	£8.53 £7.11
46	HV735 31 33-00 Available to backorder	Circlip	£1.15 £0.96
