RIDER 15 C - Ride On Mower Parts
Husqvarna RIDER 15 C - Transmission 2

Husqvarna RIDER 15 C - Transmission 2

Part No. rider_15_c_transmission_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 15 C - Transmission 2

Husqvarna RIDER 15 C - Transmission 2

Description

Husqvarna RIDER 15 C

Model Year -

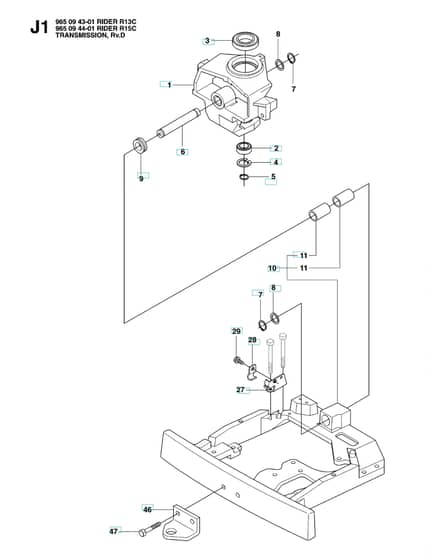

Transmission 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV506 98 58-03 Available to backorder	Spindle		£234.00 £195.00
	2		HV738 21 05-04 Available to backorder	Ball Bearing		£9.85 £8.21
	3		HV738 21 10-04 Available to backorder	Ball Bearing		£9.85 £8.21
	4		HV735 31 40-10 Available to backorder	Circlip		£5.78 £4.82
	6		HV506 98 59-01 Available to backorder	Swing Axle		£52.76 £43.97
	7		HV735 31 26-00 Available to backorder	Circlip		£0.79 £0.66
	8		HV506 77 34-01 Available to backorder	Washer		£4.18 £3.48
	9		HV740 68 14-21 Available to backorder	V-Ring		£4.97 £4.14
	10		HV535 40 60-01 Available to backorder	Bracket		£371.04 £309.20
	11		HV506 98 61-02 Available to backorder	Glidlager		£14.10 £11.75
	27		HV506 98 77-01 Available to backorder	Bracket		£12.82 £10.68
	28		HV506 56 65-01 Available to backorder	Clip		£0.90 £0.75
	29		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.56 £2.13
	46		HV506 88 99-01 Available to backorder	Hitch		£19.21 £16.01
	47		HV725 24 93-71 Available to backorder	Screw Ehhm		£7.18 £5.98
