Husqvarna RIDER 13C - Mower Deck & Cutting Deck 2

Name: Husqvarna RIDER 13C - Mower Deck & Cutting Deck 2
SKU: rider_13c_mower_deck_cutting_deck_2-group
Price: 1.91 GBP
Availability: InStock

Part No. rider_13c_mower_deck_cutting_deck_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 13C - Mower Deck & Cutting Deck 2

Description

Husqvarna RIDER 13C

Model Year -

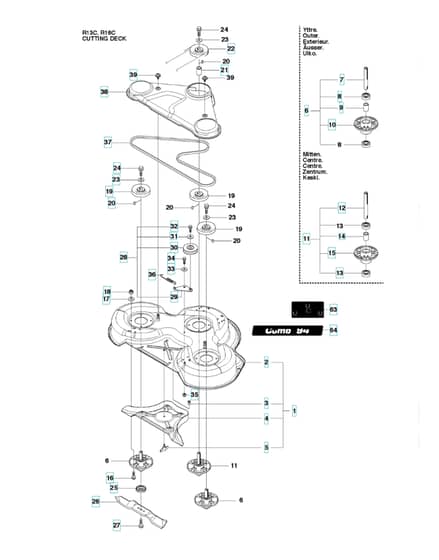

Mower Deck & Cutting Deck 2 - Parts Diagram

	Part No.	Details
3	HV506 91 62-01 Available to backorder	Nut	£6.01 £5.01
4	HV544 06 58-01 Available to backorder	Plug	£94.08 £78.40
5	HV544 06 61-01 Available to backorder	Knob	£6.01 £5.01
7	HV544 06 79-02 Available to backorder	Shaft	£25.66 £21.38
12	HV544 06 79-03 Available to backorder	Shaft	£20.77 £17.31
13	HV738 23 04-34 Available to backorder	Ball Bearing	£9.85 £8.21
16	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.02 £4.18
17	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
19	HV506 92 21-01 Available to backorder	Pulley	£37.07 £30.89
20	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
21	HV544 06 80-03 Available to backorder	Spacing Sleeve	£14.74 £12.28
22	HV506 77 86-01 Available to backorder	Pulley	£82.08 £68.40
23	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
25	HV544 06 49-01 In stock	Blade Holder	£10.61 £8.84
26	HV579 65 25-10 In stock	Blade	£38.89 £32.41
27	HV506 67 54-02 In stock	Screw Ehhfm	£7.49 £6.24
29	HV506 79 71-01 Available to backorder	Spännarm Kpl.	£21.16 £17.63
31	HV734 11 64-41 In stock	Washer	£3.25 £2.71
32	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.59 £2.99
34	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.50 £3.75
35	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
36	HV506 53 31-01 In stock	Spring	£11.87 £9.89
37	HV589 53 07-01 In stock	Belt	£56.12 £46.77
39	HV544 40 05-01 In stock	Screw	£2.75 £2.29
63	HV506 78 97-01 Available to backorder	Label	£5.09 £4.24
64	HV544 23 81-01 Available to backorder	Label	£3.84 £3.20
