Husqvarna RIDER 13 R SPECIAL - Steering 2

Name: Husqvarna RIDER 13 R SPECIAL - Steering 2
SKU: rider_13_r_special_steering_2-group
Price: 0.6 GBP
Availability: InStock

Part No. rider_13_r_special_steering_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 13 R SPECIAL - Steering 2

Description

Husqvarna RIDER 13 R SPECIAL

Model Year -

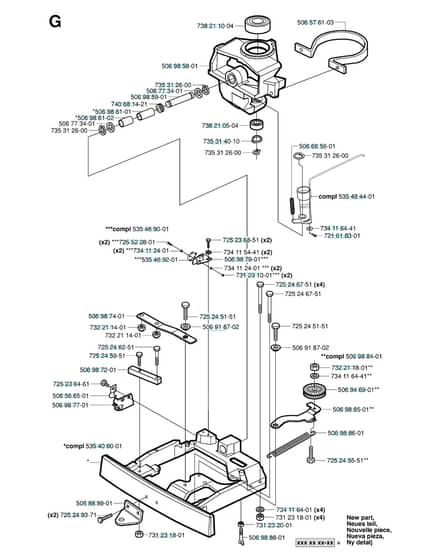

Steering 2 - Parts Diagram

	Part No.	Details
-1	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
506	HV506 56 65-01 Available to backorder	Clip	£0.90 £0.75
506	HV506 77 34-01 Available to backorder	Washer	£4.18 £3.48
506	HV506 98 59-01 Available to backorder	Swing Axle	£52.76 £43.97
506	HV506 98 77-01 Available to backorder	Bracket	£12.82 £10.68
506	HV506 98 86-01 In stock	Spring	£4.38 £3.65
506	HV544 42 73-01 Available to backorder	Styrkrans	£43.72 £36.43
506	HV506 88 99-01 Available to backorder	Hitch	£19.21 £16.01
506	HV506 98 61-02 Available to backorder	Glidlager	£14.10 £11.75
506	HV506 98 79-01 Available to backorder	Bracket	£8.98 £7.48
506	HV506 98 88-01 Available to backorder	Pendulum	£8.34 £6.95
506	HV506 66 56-01 In stock	Spring	£14.35 £11.96
506	HV506 94 69-01 In stock	Pulley	£37.76 £31.47
506	HV506 98 72-01 Available to backorder	Momentfäste	£25.00 £20.83
506	HV506 98 84-01 Available to backorder	Belt Tensioner Assy	£78.48 £65.40
535	HV535 48 44-04 Available to backorder	Belt Tensioner Assy	£50.89 £42.41
535	HV535 40 60-01 Available to backorder	Bracket	£371.04 £309.20
721	HV721 61 83-01 Available to backorder	Split Pin	£0.72 £0.60
725	HV725 24 67-51 Available to backorder	Screw Ehhm	£7.70 £6.42
725	HV725 23 68-51 Available to backorder	Screw	£2.30 £1.92
725	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.40 £5.33
725	HV725 24 93-71 Available to backorder	Screw Ehhm	£7.18 £5.98
725	HV725 24 51-51 Available to backorder	Screw	£3.59 £2.99
725	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
725	HV725 52 28-01 Available to backorder	Screw Ihscm	£1.28 £1.07
725	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.56 £2.13
725	HV725 24 55-51 Available to backorder	Screw	£3.59 £2.99
731	HV731 23 10-01 Available to backorder	Hexagon Nut	£1.56 £1.30
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.55 £1.29
734	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
734	HV734 11 24-01 Available to backorder	Washer	£2.83 £2.36
734	HV734 11 64-41 In stock	Washer	£3.25 £2.71
735	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
735	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
738	HV738 21 05-04 Available to backorder	Ball Bearing	£9.85 £8.21
738	HV738 21 10-04 Available to backorder	Ball Bearing	£9.85 £8.21
740	HV740 68 14-21 Available to backorder	V-Ring	£4.97 £4.14
