Husqvarna RIDER 13 R SPECIAL - Protection Frame

Name: Husqvarna RIDER 13 R SPECIAL - Protection Frame
SKU: rider_13_r_special_protection_frame-group
Price: 0.63 GBP
Availability: InStock

Part No. rider_13_r_special_protection_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 13 R SPECIAL - Protection Frame

Description

Husqvarna RIDER 13 R SPECIAL

Model Year -

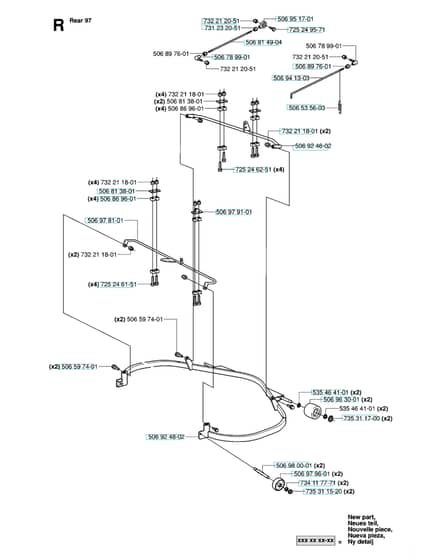

Protection Frame - Parts Diagram

	Part No.	Details
506	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
506	HV506 86 96-01 Available to backorder	Bearing	£7.76 £6.47
506	HV506 96 30-01 Available to backorder	Wheel Assy	£78.60 £65.50
506	HV506 98 00-01 Available to backorder	Shaft	£19.24 £16.03
506	HV506 78 99-01 Available to backorder	Vinkellänk Din 71802	£11.54 £9.62
506	HV506 89 76-01 Available to backorder	Nut	£3.59 £2.99
506	HV506 97 81-01 Available to backorder	Bakre Tvärrör Kpl.	£169.32 £141.10
506	HV506 53 56-03 Available to backorder	Draw Spring	£6.00 £5.00
506	HV506 81 38-01 Available to backorder	Reinforcing Plate	£7.06 £5.88
506	HV506 95 17-01 Available to backorder	Rod End	£19.21 £16.01
506	HV506 97 96-01 Available to backorder	Wheel	£24.50 £20.42
535	HV535 46 41-01 In stock	Washer	£4.00 £3.33
725	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
725	HV725 24 95-71 Available to backorder	Screw Ehhm	£7.06 £5.88
725	HV725 24 61-51 Available to backorder	Screw Ehhm	£6.29 £5.24
731	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
732	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
734	HV734 11 77-71 Available to backorder	Washer	£2.56 £2.13
735	HV735 31 15-20 Available to backorder	E-Clip	£0.77 £0.64
735	HV735 31 17-00 In stock	Circlip	£0.76 £0.63
