Husqvarna RIDER 13 BIOCLIP - Steering Column

Name: Husqvarna RIDER 13 BIOCLIP - Steering Column
SKU: rider_13_bioclip_steering_column-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 13 BIOCLIP - Steering Column

Description

Husqvarna RIDER 13 BIOCLIP

Model Year -

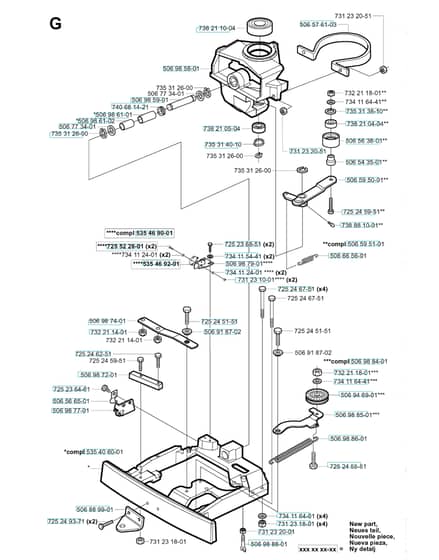

Steering Column - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
506	HV506 56 38-01 Available to backorder	Tension Roller	£26.54 £22.12
506	HV506 66 56-01 Available to backorder	Spring	£14.52 £12.10
506	HV506 94 69-01 Available to backorder	Pulley	£37.20 £31.00
506	HV506 98 72-01 Available to backorder	Momentfäste	£25.22 £21.02
506	HV506 98 84-01 Available to backorder	Belt Tensioner Assy	£82.04 £68.37
506	HV506 56 65-01 Available to backorder	Clip	£0.92 £0.77
506	HV506 77 34-01 Available to backorder	Washer	£4.04 £3.37
506	HV506 98 59-01 Available to backorder	Swing Axle	£53.26 £44.38
506	HV506 98 77-01 Available to backorder	Bracket	£12.94 £10.78
506	HV506 98 86-01 In stock	Spring	£4.45 £3.71
506	HV544 42 73-01 Available to backorder	Styrkrans	£42.26 £35.22
506	HV506 88 99-01 Available to backorder	Hitch	£19.40 £16.17
506	HV506 98 61-02 Available to backorder	Glidlager	£13.32 £11.10
506	HV506 98 79-01 Available to backorder	Bracket	£9.06 £7.55
506	HV506 98 88-01 Available to backorder	Pendulum	£8.40 £7.00
535	HV535 40 60-01 Available to backorder	Bracket	£322.80 £269.00
725	HV725 24 93-71 Available to backorder	Screw Ehhm	£6.94 £5.78
725	HV725 24 51-51 Available to backorder	Screw	£3.62 £3.02
725	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.34 £5.28
725	HV725 52 28-01 Available to backorder	Screw Ihscm	£1.28 £1.07
725	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
725	HV725 24 55-51 Available to backorder	Screw	£3.62 £3.02
725	HV725 24 67-51 Available to backorder	Screw Ehhm	£7.76 £6.47
725	HV725 23 68-51 Available to backorder	Screw	£2.28 £1.90
725	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.34 £5.28
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.24 £2.70
731	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.04 £2.53
731	HV731 23 10-01 Available to backorder	Hexagon Nut	£1.48 £1.23
732	HV732 21 18-01 Available to backorder	Lock Nut	£2.40 £2.00
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.78 £1.48
734	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
734	HV734 11 24-01 Available to backorder	Washer	£2.84 £2.37
734	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
734	HV734 11 54-41 Available to backorder	Washer	£2.58 £2.15
735	HV735 31 38-10 Available to backorder	Circlip	£0.92 £0.77
735	HV735 31 40-10 Available to backorder	Circlip	£5.82 £4.85
735	HV735 31 26-00 Available to backorder	Circlip	£0.76 £0.63
738	HV738 21 05-04 Available to backorder	Ball Bearing	£9.96 £8.30
738	HV738 21 10-04 Available to backorder	Ball Bearing	£9.96 £8.30
738	HV738 21 04-04 Available to backorder	Ball Bearing	£8.42 £7.02
738	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
740	HV740 68 14-21 Available to backorder	V-Ring	£4.96 £4.13
