Husqvarna RIDER 11R - 94cm Cutting Deck 2

Husqvarna RIDER 11R - 94cm Cutting Deck 2

Part No. rider_11r_94cm_cutting_deck_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 11R - 94cm Cutting Deck 2

Husqvarna RIDER 11R - 94cm Cutting Deck 2

Description

Husqvarna RIDER 11R

Model Year -

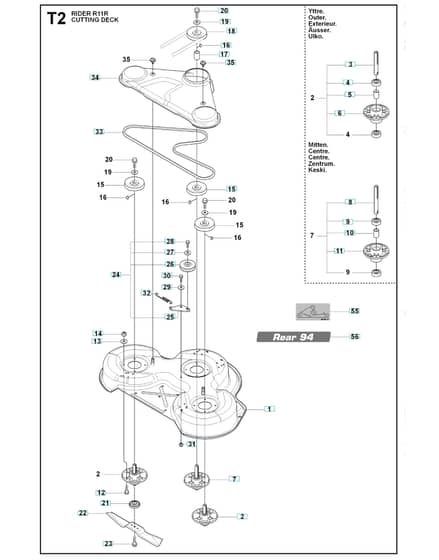

94cm Cutting Deck 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	3		HV544 06 79-02 Available to backorder	Shaft		£25.66 £21.38
	8		HV544 06 79-01 Available to backorder	Shaft		£49.19 £40.99
	9		HV738 23 04-34 Available to backorder	Ball Bearing		£9.85 £8.21
	12		HV535 42 38-01 Available to backorder	Screw Rsqm		£5.02 £4.18
	13		HV734 11 64-01 Available to backorder	Washer		£2.29 £1.91
	15		HV506 92 21-01 Available to backorder	Pulley		£37.07 £30.89
	16		HV506 53 35-01 Available to backorder	Parallel Key		£4.57 £3.81
	17		HV544 06 80-03 Available to backorder	Spacing Sleeve		£14.74 £12.28
	18		HV506 77 86-01 Available to backorder	Pulley		£82.08 £68.40
	19		HV734 11 74-41 Available to backorder	Washer		£4.69 £3.91
	21		HV544 06 49-01 In stock	Blade Holder		£10.61 £8.84
	22		HV505 46 35-10 Available to backorder	Blade		£42.30 £35.25
	23		HV506 67 54-02 In stock	Screw Ehhfm		£7.49 £6.24
	25		HV506 79 71-01 Available to backorder	Spännarm Kpl.		£21.16 £17.63
	27		HV734 11 64-41 In stock	Washer		£3.25 £2.71
	28		HV506 55 83-02 Available to backorder	Screw Ehhft		£3.59 £2.99
	30		HV725 24 51-71 Available to backorder	Screw Ehhm		£4.50 £3.75
	31		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	32		HV506 53 31-01 In stock	Spring		£11.87 £9.89
	33		HV589 53 07-01 In stock	Belt		£56.12 £46.77
	35		HV544 40 05-01 In stock	Screw		£2.75 £2.29
	55		HV506 78 97-01 Available to backorder	Label		£5.09 £4.24

Description

Husqvarna RIDER 11R

Model Year -

94cm Cutting Deck 2 - Parts Diagram
