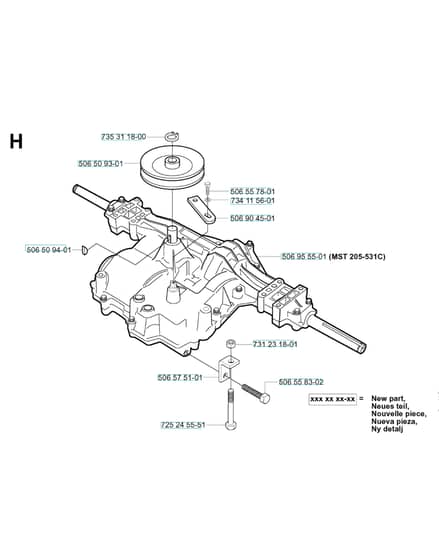

Husqvarna RIDER 11 - Transmission

Husqvarna RIDER 11 - Transmission

Description

Husqvarna RIDER 11

Model Year - 2006-01

Transmission - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	506		HV506 55 83-02 Available to backorder	Screw Ehhft		£3.62 £3.02
	506		HV506 50 94-01 Available to backorder	Woodruff Key		£3.76 £3.13
	506		HV506 55 78-01 Available to backorder	U6S-Unf1/4"X28 L		£2.58 £2.15
	725		HV725 24 55-51 Available to backorder	Screw		£3.62 £3.02
	731		HV731 23 18-01 Available to backorder	Hexagon Nut		£3.24 £2.70
	735		HV735 31 18-00 Available to backorder	Circlip		£0.77 £0.64

Description

Husqvarna RIDER 11

Model Year - 2006-01

Transmission - Parts Diagram
