Description

Husqvarna RIDER 11

Model Year - 2006-01

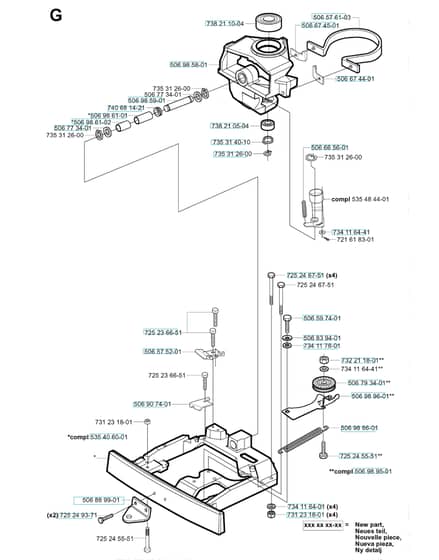

Chassis & Frame 2 - Parts Diagram

	Part No.	Details
-1	HV738 21 04-04 Available to backorder	Ball Bearing	£8.71 £7.26
0	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.09 £9.24
1	HV506 56 38-01 Available to backorder	Tension Roller	£26.28 £21.90
2	HV725 24 59-51 Available to backorder	Screw Ehhm	£6.40 £5.33
3	HV735 31 38-10 Available to backorder	Circlip	£0.90 £0.75
506	HV506 66 56-01 In stock	Spring	£14.35 £11.96
506	HV506 83 94-01 Available to backorder	Spring Washer	£2.86 £2.38
506	HV506 98 61-02 Available to backorder	Glidlager	£14.10 £11.75
506	HV544 42 73-01 Available to backorder	Styrkrans	£43.72 £36.43
506	HV506 77 34-01 Available to backorder	Washer	£4.18 £3.48
506	HV506 88 99-01 Available to backorder	Hitch	£19.21 £16.01
506	HV506 98 86-01 In stock	Spring	£4.38 £3.65
506	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
506	HV506 79 34-01 Available to backorder	Belt Tens Wheel Assy	£22.09 £18.41
506	HV506 98 59-01 Available to backorder	Swing Axle	£52.76 £43.97
506	HV506 98 96-01 Available to backorder	Belt Tensioner	£21.43 £17.86
535	HV535 40 60-01 Available to backorder	Bracket	£371.04 £309.20
725	HV725 23 66-51 Available to backorder	Hexagonal Screw M6X12	£1.56 £1.30
725	HV725 24 67-51 Available to backorder	Screw Ehhm	£7.70 £6.42
725	HV725 24 55-51 Available to backorder	Screw	£3.59 £2.99
725	HV725 24 93-71 Available to backorder	Screw Ehhm	£7.18 £5.98
731	HV731 23 18-01 Available to backorder	Hexagon Nut	£3.22 £2.68
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
734	HV734 11 64-41 In stock	Washer	£3.25 £2.71
734	HV734 11 78-01 Available to backorder	Washer	£3.59 £2.99
734	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
735	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
735	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
738	HV738 21 05-04 Available to backorder	Ball Bearing	£9.85 £8.21
738	HV738 21 10-04 Available to backorder	Ball Bearing	£9.85 £8.21
740	HV740 68 14-21 Available to backorder	V-Ring	£4.97 £4.14
