Husqvarna RIDER 11 BIOCLIP - 90cm Cutting Deck

Name: Husqvarna RIDER 11 BIOCLIP - 90cm Cutting Deck
SKU: rider_11_bioclip_90cm_cutting_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. rider_11_bioclip_90cm_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RIDER 11 BIOCLIP - 90cm Cutting Deck

Description

Husqvarna RIDER 11 BIOCLIP

Model Year -

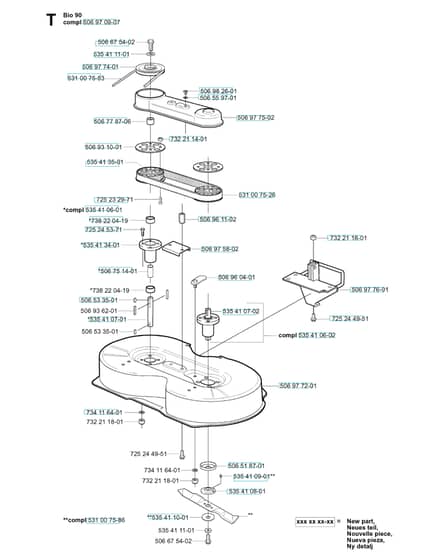

90cm Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV506 93 62-01 Available to backorder	Wedge	£3.91 £3.26
506	HV506 98 26-01 Available to backorder	Screw	£2.56 £2.13
506	HV506 55 97-01 Available to backorder	Washer	£2.30 £1.92
506	HV506 77 87-06 Available to backorder	Spacer	£13.46 £11.22
506	HV506 96 04-01 Available to backorder	Eccentric	£28.56 £23.80
506	HV506 51 87-01 In stock	Dust Cover	£6.16 £5.13
506	HV506 67 54-02 In stock	Screw Ehhfm	£7.49 £6.24
506	HV506 93 10-01 Available to backorder	Flange	£34.28 £28.57
506	HV506 97 74-01 Available to backorder	Pulley	£115.08 £95.90
506	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
506	HV506 75 14-01 Available to backorder	Spacer	£12.18 £10.15
531	HV531 00 75-86 In stock	Blade	£43.80 £36.50
535	HV535 41 07-02 Available to backorder	Shaft	£41.89 £34.91
535	HV535 41 10-01 Available to backorder	Cup	£9.79 £8.16
535	HV535 41 08-01 Available to backorder	Adapter	£32.63 £27.19
535	HV535 41 11-01 Available to backorder	Washer	£7.18 £5.98
535	HV535 41 07-01 Available to backorder	Shaft	£44.28 £36.90
535	HV535 41 09-01 In stock	Pin	£5.38 £4.48
535	HV535 41 35-01 Available to backorder	Pulley	£46.46 £38.72
725	HV725 23 29-71 Available to backorder	Screw Ehhm	£2.05 £1.71
725	HV725 24 49-51 Available to backorder	Screw	£3.32 £2.77
725	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
732	HV732 21 14-01 Available to backorder	Lock Nut	£1.55 £1.29
732	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
734	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
738	HV738 22 04-19 Available to backorder	Ball Bearing	£8.71 £7.26
