Husqvarna RC 320TS AWD - Height Adjustment

Husqvarna RC 320TS AWD - Height Adjustment

Part No. rc_320ts_awd_height_adjustment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna RC 320TS AWD - Height Adjustment

Husqvarna RC 320TS AWD - Height Adjustment

Description

Husqvarna RC 320TS AWD

Model Year -

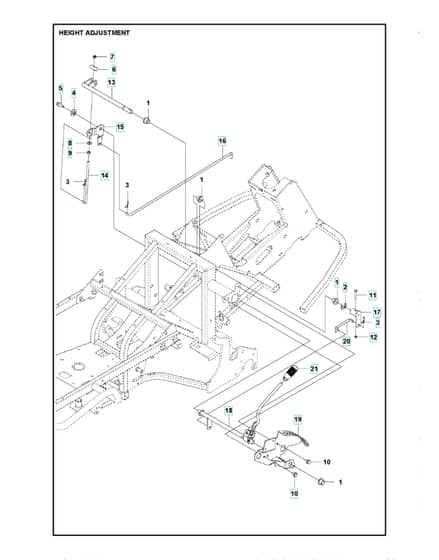

Height Adjustment - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV584 87 13-02 Available to backorder	Bearing		£5.88 £4.90
	2		HV735 31 22-20 Available to backorder	E-Clip		£0.90 £0.75
	3		HV721 61 83-01 Available to backorder	Split Pin		£0.72 £0.60
	5		HV506 57 01-05 In stock	Screw Ehhfm		£1.06 £0.88
	7		HV732 21 18-01 In stock	Lock Nut		£2.38 £1.98
	8		HV734 11 72-01 Available to backorder	Washer		£1.98 £1.65
	9		HV731 23 18-01 Available to backorder	Hexagon Nut		£3.22 £2.68
	10		HV506 57 01-03 Available to backorder	Screw Ehhfm		£5.02 £4.18
	11		HV725 23 78-51 Available to backorder	Screw Ehhm		£3.59 £2.99
	12		HV732 25 16-01 Available to backorder	Hexagon Locking Nut		£2.05 £1.71
	13		HV588 93 32-01 Available to backorder	Shaft Assy		£47.76 £39.80

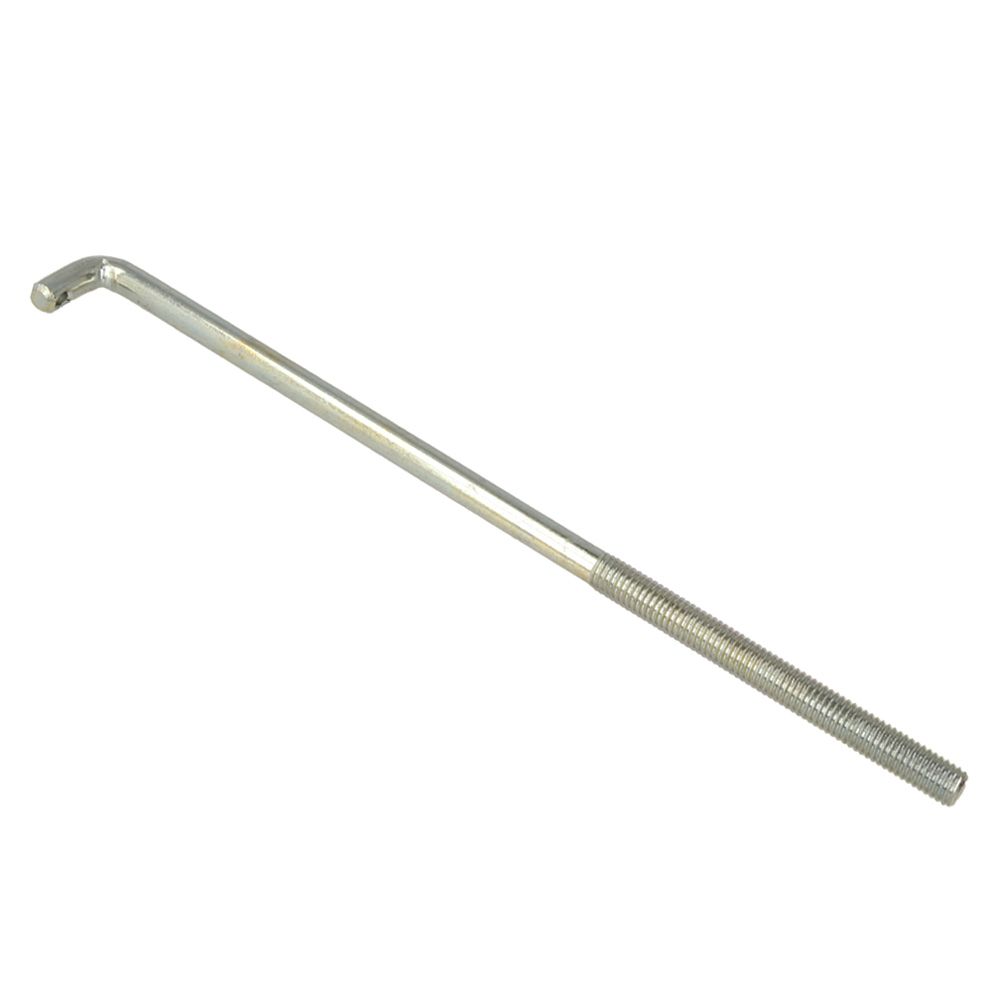

	14		HV588 93 57-01 Available to backorder	Rod		£10.26 £8.55
	15		HV588 93 55-01 Available to backorder	Link		£14.05 £11.71
	16		HV588 93 56-01 Available to backorder	Connection Rod		£16.04 £13.37
	17		HV588 93 38-01 Available to backorder	Link Assy		£19.24 £16.03
	18		HV582 19 82-01 Available to backorder	Height Adjuster		£41.02 £34.18
	19		HV588 68 10-01 Available to backorder	Bracket		£53.83 £44.86
	20		HV588 93 58-01 Available to backorder	Rod		£9.62 £8.02

Description

Husqvarna RC 320TS AWD

Model Year -

Height Adjustment - Parts Diagram
