Husqvarna RC 320TS AWD - Collector

Name: Husqvarna RC 320TS AWD - Collector
SKU: rc_320ts_awd_collector-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna RC 320TS AWD

Model Year -

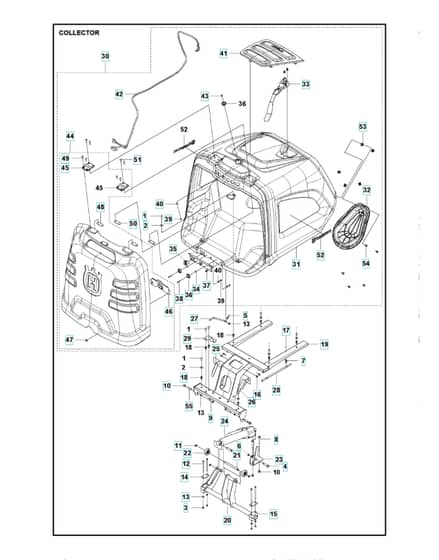

Collector - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV535 42 58-02 Available to backorder	Screw Ihpanm	£7.12 £5.93
2	HV504 45 99-01 Available to backorder	Washer	£2.84 £2.37
3	HV732 25 16-01 Available to backorder	Hexagon Locking Nut	£2.06 £1.72
4	HV589 01 94-01 Available to backorder	Pin	£11.64 £9.70
5	HV721 61 83-01 Available to backorder	Split Pin	£0.77 £0.64
7	HV582 75 22-01 Available to backorder	Clip	£0.92 £0.77
8	HV506 57 01-07 Available to backorder	Screw Ehhfm	£7.12 £5.93
9	HV725 24 60-71 Available to backorder	Screw Ehhm	£6.22 £5.18
11	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
12	HV535 43 28-01 Available to backorder	Screw Ihscm	£7.12 £5.93
13	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
14	HV506 81 38-01 Available to backorder	Reinforcing Plate	£7.12 £5.93
15	HV501 10 22-01 Available to backorder	Bearing	£9.72 £8.10
16	HV725 23 64-61 Available to backorder	Screw Ehhft	£2.58 £2.15
17	HV722 78 05-03 Available to backorder	Rivet	£1.94 £1.62
19	HV589 00 69-01 Available to backorder	Bag Frame	£28.84 £24.03
20	HV501 06 61-01 Available to backorder	Link Arm	£112.58 £93.82
21	HV501 06 67-01 Available to backorder	Shaft	£22.32 £18.60
22	HV501 06 68-01 Available to backorder	Support Wheel	£9.72 £8.10
23	HV589 21 38-01 Available to backorder	Bracket	£27.82 £23.18
24	HV501 10 80-01 Available to backorder	Actuator	£546.00 £455.00
25	HV589 01 05-01 Available to backorder	Bracket	£11.64 £9.70
26	HV589 01 05-02 Available to backorder	Bracket	£11.64 £9.70
27	HV501 10 21-01 Available to backorder	Rod	£7.12 £5.93
28	HV582 38 36-01 Available to backorder	Tool	£31.66 £26.38
29	HV589 00 75-01 Available to backorder	Bracket	£10.36 £8.63
30	HV582 15 94-01 Available to backorder	Bag	£1,009.20 £841.00
31	HV582 58 85-01 Available to backorder	Bag	£474.00 £395.00
32	HV582 57 93-01 Available to backorder	Sealing	£126.80 £105.67
33	HV582 54 71-01 Available to backorder	Indicator	£127.44 £106.20
34	HV582 60 42-01 Available to backorder	Sleeve	£25.22 £21.02
35	HV532 40 75-68 Available to backorder	Switch	£16.34 £13.62
36	HV501 09 81-01 Available to backorder	Magnet	£22.64 £18.87
38	HV725 63 35-01 Available to backorder	Screw	£2.34 £1.95
39	HV732 25 14-01 Available to backorder	Hexagon Locking Nut	£2.76 £2.30
40	HV504 45 60-01 Available to backorder	Washer. 5X13X1	£2.34 £1.95
41	HV589 22 71-01 Available to backorder	Cover	£44.64 £37.20
42	HV589 02 12-01 Available to backorder	Wiring	£87.34 £72.78
44	HV582 36 97-01 Available to backorder	Hatch	£340.80 £284.00
45	HV501 10 70-01 Available to backorder	Hinge	£64.68 £53.90
46	HV582 41 33-01 Available to backorder	Handle	£64.68 £53.90
47	HV577 01 39-01 Available to backorder	Rivet	£0.77 £0.64
50	HV501 17 59-01 Available to backorder	Reinforcement Plate	£29.12 £24.27
52	HV577 46 90-01 Available to backorder	Decal	£12.94 £10.78
54	HV725 23 68-61 Available to backorder	Screw Ehhft	£3.62 £3.02
55	HV582 49 45-01 Available to backorder	Tube	£12.28 £10.23
