Husqvarna RC 318T - Transmission

Name: Husqvarna RC 318T - Transmission
SKU: rc_318t_transmission-group
Price: 0.64 GBP
Availability: InStock

Part No. rc_318t_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna RC 318T

Model Year -

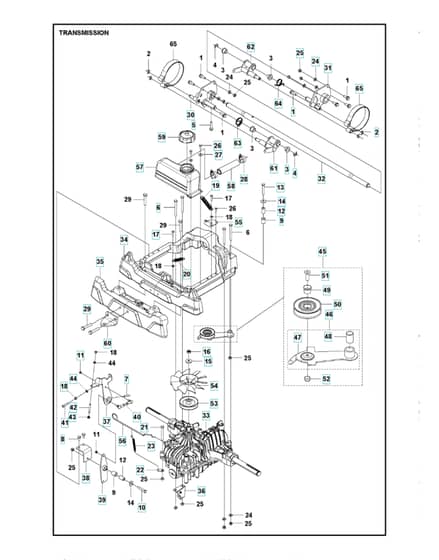

Transmission - Parts Diagram

	Part No.	Details
1	HV506 57 01-05 In stock	Screw Ehhfm	£1.06 £0.88
2	HV735 31 15-20 Available to backorder	E-Clip	£0.77 £0.64
3	HV584 87 13-02 Available to backorder	Bearing	£5.88 £4.90
4	HV735 31 18-20 Available to backorder	E-Clip	£0.77 £0.64
5	HV725 24 59-61 Available to backorder	Screw Ehhft	£6.29 £5.24
7	HV721 43 47-01 Available to backorder	Spring Pin	£1.67 £1.39
8	HV725 24 49-51 Available to backorder	Screw	£3.32 £2.77
11	HV732 25 16-01 Available to backorder	Hexagon Locking Nut	£2.05 £1.71
12	HV506 99 20-01 Available to backorder	Pipe	£18.26 £15.22
13	HV725 24 62-51 Available to backorder	Screw Ehhm	£6.29 £5.24
14	HV734 11 64-41 In stock	Washer	£3.25 £2.71
15	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
16	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
17	HV725 23 72-71 Available to backorder	Screw Ehhm	£2.60 £2.17
18	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.56 £1.30
19	HV506 54 25-01 In stock	Spring	£6.86 £5.72
20	HV506 53 56-03 Available to backorder	Draw Spring	£6.00 £5.00
21	HV725 24 66-51 Available to backorder	Screw	£7.06 £5.88
23	HV506 83 43-01 Available to backorder	Spring	£3.84 £3.20
24	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
26	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.30 £1.92
27	HV734 11 54-41 Available to backorder	Washer	£2.56 £2.13
29	HV725 25 02-71 Available to backorder	Screw Ehhm	£7.70 £6.42
30	HV582 56 57-01 Available to backorder	Sheet	£53.20 £44.33
31	HV582 56 57-02 Available to backorder	Sheet	£53.20 £44.33
32	HV589 03 26-01 Available to backorder	Wheel Axle	£183.36 £152.80
33	HV501 11 41-01 Available to backorder	Transmission	£969.48 £807.90
34	HV501 75 08-01 Available to backorder	Frame Assy	£301.04 £250.87
35	HV582 05 11-01 Available to backorder	Counterweight	£394.37 £328.64
37	HV582 81 74-01 Available to backorder	Lever	£87.96 £73.30
39	HV582 85 93-01 Available to backorder	Lever	£123.84 £103.20
41	HV725 23 74-71 Available to backorder	Screw Ehhm	£2.83 £2.36
42	HV589 40 40-01 Available to backorder	Screw	£3.59 £2.99
43	HV589 40 33-01 Available to backorder	Pad	£6.40 £5.33
44	HV503 23 04-05 Available to backorder	Washer	£2.56 £2.13
45	HV506 99 30-01 Available to backorder	Belt Tensioner Assy	£66.24 £55.20
46	HV535 40 63-01 Available to backorder	Belt Tensioner Assy	£80.64 £67.20
48	HV506 98 61-03 Available to backorder	Bushing	£7.06 £5.88
49	HV506 99 33-01 Available to backorder	Sleeve	£8.98 £7.48
50	HV506 94 70-01 Available to backorder	Belt Tensioner Wheel	£31.38 £26.15
51	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
52	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
53	HV506 99 14-01 Available to backorder	Pulley	£86.16 £71.80
54	HV506 94 81-01 Available to backorder	Fan	£17.28 £14.40
55	HV506 99 28-01 Available to backorder	Bracket	£10.26 £8.55
57	HV535 45 81-01 Available to backorder	Expansion Tank	£34.60 £28.83
58	HV535 45 83-01 Available to backorder	Hose	£18.82 £15.68
59	HV506 67 33-01 Available to backorder	Tank Cap Assy	£41.75 £34.79
60	HV506 88 99-01 Available to backorder	Hitch	£19.21 £16.01
61	HV582 52 75-01 Available to backorder	Bracket	£48.70 £40.58
62	HV582 52 75-02 Available to backorder	Bracket	£48.70 £40.58
63	HV582 76 27-01 Available to backorder	Spring	£3.46 £2.88
64	HV582 76 27-02 Available to backorder	Spring	£3.46 £2.88
65	HV582 40 29-01 Available to backorder	Brake Band	£46.14 £38.45
