Husqvarna Rb150 - Drive

Husqvarna Rb150 - Drive

Part No. rb150_1997_03_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

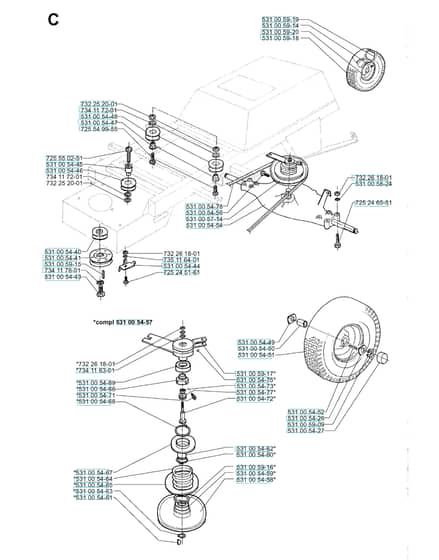

Husqvarna Rb150 - Drive

Husqvarna Rb150 - Drive

Description

Husqvarna Rb150

Model Year - 1997-03

Drive - Parts Diagram

Ref.		Img.	Part No.	Details
	531		HV531 00 54-61 Available to backorder	Key		£3.32 £2.77
	531		HV531 00 54-63 Available to backorder	Retainer Ring		£0.77 £0.64
	732		HV732 25 20-01 Available to backorder	Hexagon Locking Nut		£4.36 £3.63
	734		HV734 11 63-01 In stock	Washer		£2.63 £2.19
	734		HV734 11 72-01 Available to backorder	Washer		£1.98 £1.65
	734		HV734 11 78-01 Available to backorder	Washer		£3.59 £2.99
	735		HV735 11 64-01 Available to backorder	Spring Washer		£3.59 £2.99

Description

Husqvarna Rb150

Model Year - 1997-03

Drive - Parts Diagram
