Husqvarna R214 C - 94cm Cutting Deck 2

Name: Husqvarna R214 C - 94cm Cutting Deck 2
SKU: r214_c_94cm_cutting_deck_2-group
Price: 1.03 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R214 C

Model Year -

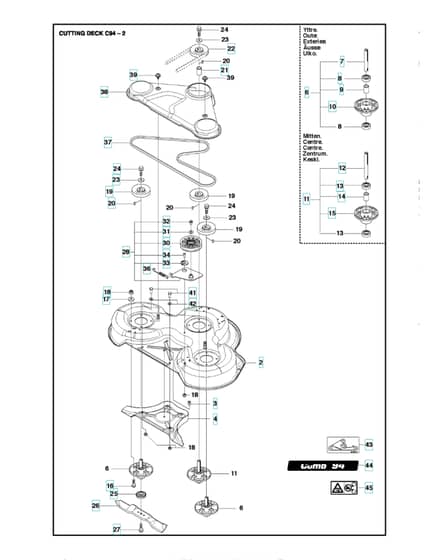

94cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV581 23 74-07 Out of stock	Deck Shell Assy	£514.80 £429.00
3	HV506 91 62-01 Out of stock	Nut	£5.82 £4.85
4	HV544 06 58-01 Out of stock	Plug	£87.60 £73.00
6	HV576 38 41-02 Out of stock	Blade Housing Assy	£120.24 £100.20
7	HV576 38 43-02 Out of stock	Shaft	£31.52 £26.27
11	HV576 38 41-03 Out of stock	Blade Housing Assy	£132.96 £110.80
13	HV738 23 04-34 Out of stock	Ball Bearing	£9.67 £8.06
14	HV576 38 44-01 Out of stock	Spacing Sleeve	£10.93 £9.11
15	HV576 38 42-01 Out of stock	Bearing Housing	£68.28 £56.90
16	HV535 42 38-01 Out of stock	Screw Rsqm	£4.98 £4.15
18	HV732 21 18-01 In stock	Lock Nut	£2.33 £1.94
19	HV506 92 21-01 Out of stock	Pulley	£37.19 £30.99
20	HV506 53 35-01 Out of stock	Parallel Key	£4.22 £3.52
21	HV544 06 80-03 Out of stock	Spacing Sleeve	£14.03 £11.69
22	HV506 77 86-01 In stock	Pulley	Was £75.24 £62.70 Special Price £55.28 £46.07
23	HV734 11 74-41 Out of stock	Washer	£4.67 £3.89
25	HV544 06 49-01 In stock	Blade Holder	£10.56 £8.80
26	HV579 65 25-10 Out of stock	Blade	£38.88 £32.40
27	HV506 67 54-02 Out of stock	Screw Ehhfm	£7.46 £6.22
28	HV580 79 41-01 Out of stock	Belt Tensioner Assy	£40.51 £33.76
31	HV734 11 64-41 Out of stock	Washer	£3.37 £2.81
32	HV506 55 83-02 Out of stock	Screw Ehhft	£3.52 £2.93
33	HV505 45 17-01 In stock	Washer	Was £15.68 £13.07 Special Price £9.56 £7.97
34	HV725 64 53-01 Out of stock	Screw Ihcsfm	£1.24 £1.03
36	HV506 53 31-01 Out of stock	Spring	£12.28 £10.23
37	HV589 53 07-01 In stock	Belt	£51.84 £43.20
38	HV522 82 19-03 Out of stock	Belt Cover	£61.61 £51.34
39	HV544 40 05-01 In stock	Screw	£2.89 £2.41
41	HV725 24 51-71 Out of stock	Screw Ehhm	£4.43 £3.69
42	HV734 11 64-01 Out of stock	Washer	£2.33 £1.94
43	HV506 78 97-01 Out of stock	Label	£5.04 £4.20
44	HV544 23 81-01 Out of stock	Label	£3.83 £3.19
45	HV574 51 00-01 Out of stock	Decal	£3.08 £2.57
