Husqvarna R213 C - Steering

Name: Husqvarna R213 C - Steering
SKU: r213_c_steering-group
Price: 0.63 GBP
Availability: InStock

Part No. r213_c_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R213 C

Model Year -

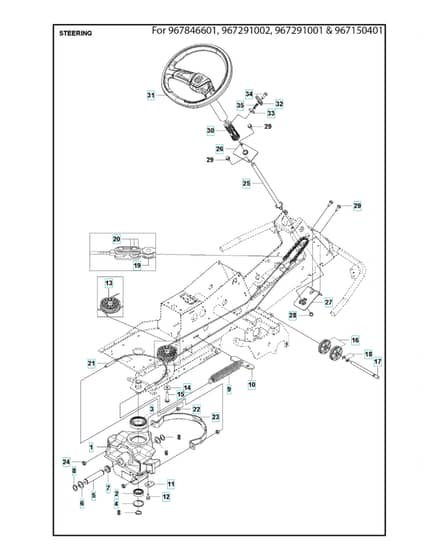

Steering - Parts Diagram

	Part No.	Details
1	HV577 65 93-01 Available to backorder	Spindle	£223.08 £185.90
2	HV738 21 05-04 Available to backorder	Ball Bearing	£9.85 £8.21
3	HV738 21 10-04 Available to backorder	Ball Bearing	£9.85 £8.21
4	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
5	HV506 98 59-01 Available to backorder	Swing Axle	£52.76 £43.97
6	HV506 77 34-01 Available to backorder	Washer	£4.18 £3.48
7	HV740 68 14-21 Available to backorder	V-Ring	£4.97 £4.14
8	HV735 31 26-00 Available to backorder	Circlip	£0.79 £0.66
9	HV506 67 19-01 Available to backorder	Spring	£34.60 £28.83
10	HV590 73 54-01 Available to backorder	Spring Retainer	£14.71 £12.26
11	HV506 67 08-01 Available to backorder	Link	£10.26 £8.55
12	HV506 59 74-01 In stock	Screw Ehhfm	£6.12 £5.10
13	HV576 49 25-01 Available to backorder	Pulley	£70.56 £58.80
14	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
15	HV506 67 54-03 Available to backorder	Screw Ehhfm	£6.29 £5.24
16	HV506 52 24-01 Available to backorder	Starter Pulley	£10.57 £8.81
17	HV506 53 94-04 Available to backorder	Shaft	£20.66 £17.22
18	HV735 31 14-20 Available to backorder	E-Clip	£0.77 £0.64
19	HV506 55 46-01 In stock	Chain	£22.55 £18.79
20	HV506 55 47-01 In stock	Linkage	£4.86 £4.05
21	HV501 60 48-04 In stock	Cable Assy	£21.84 £18.20
24	HV732 21 20-51 Available to backorder	Nut	£4.09 £3.41
26	HV584 15 56-01 Available to backorder	Bracket	£12.82 £10.68
27	HV583 89 97-01 Available to backorder	Bracket	£21.74 £18.12
28	HV735 31 17-00 In stock	Circlip	£0.76 £0.63
29	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
30	HV587 08 09-01 Available to backorder	Driver	£11.54 £9.62
33	HV593 60 52-01 Available to backorder	Fixing Plate	£6.67 £5.56
34	HV593 14 94-01 Available to backorder	Pin	£2.44 £2.03

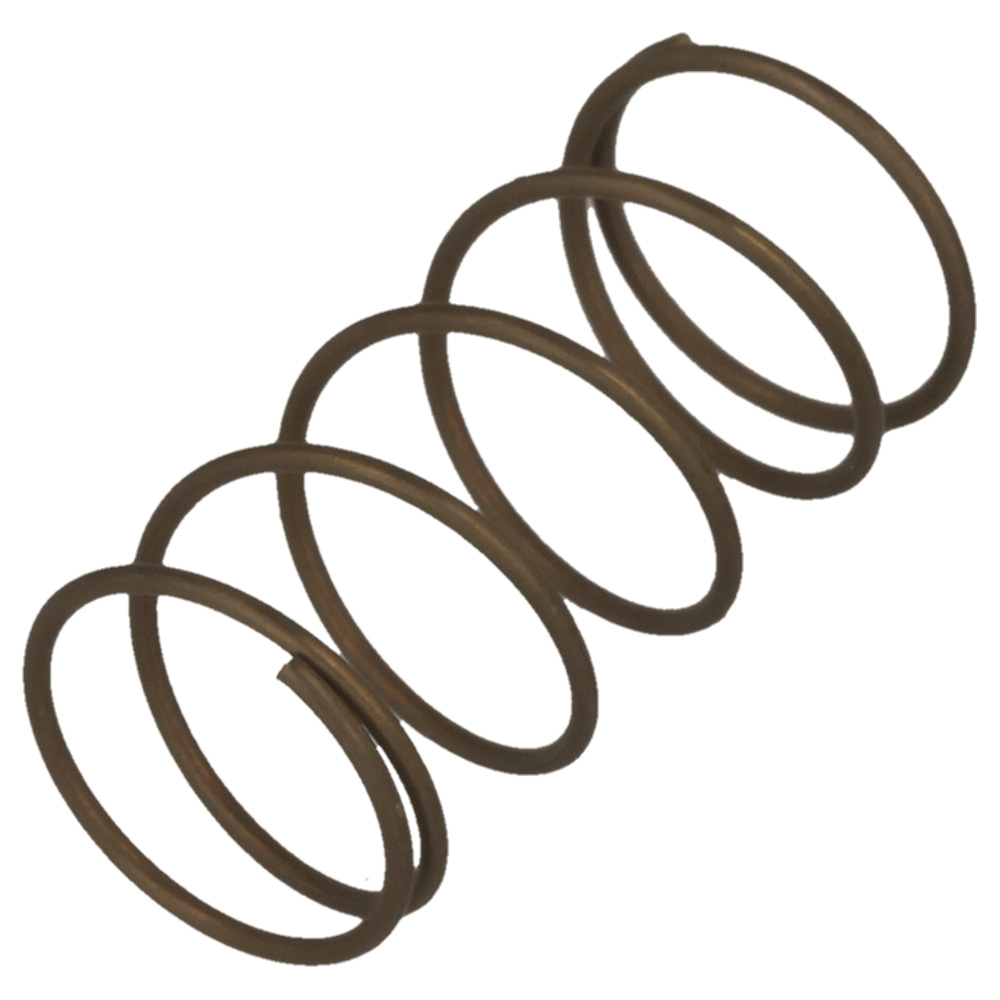

35	HV593 86 88-01 Available to backorder	Spring	£3.52 £2.93
