Husqvarna R213 C - Pedals

Husqvarna R213 C - Pedals

Part No. r213_c_pedals-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna R213 C - Pedals

Husqvarna R213 C - Pedals

Description

Husqvarna R213 C

Model Year -

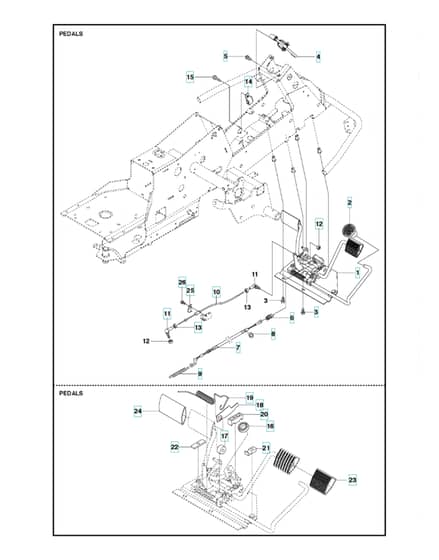

Pedals - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV586 96 93-01 Available to backorder	Pedal Plate Assy		£156.12 £130.10
	2		HV586 72 74-01 Available to backorder	Knob		£14.36 £11.97
	3		HV506 57 01-04 Available to backorder	Screw Ehhfm		£5.02 £4.18
	6		HV506 94 63-01 Available to backorder	Brake Spring		£10.43 £8.69
	7		HV506 99 27-01 Available to backorder	Brake Wire		£54.23 £45.19
	8		HV735 31 09-20 Available to backorder	E-Clip		£0.77 £0.64
	9		HV506 53 56-03 Available to backorder	Draw Spring		£6.00 £5.00
	10		HV574 41 11-01 Available to backorder	Control Cable		£60.48 £50.40
	11		HV578 77 68-01 Available to backorder	Ball Joint		£11.74 £9.78
	12		HV732 21 16-01 Available to backorder	Lock Nut		£1.79 £1.49
	13		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	14		HV522 43 08-01 Available to backorder	Bracket		£8.71 £7.26
	16		HV738 21 02-04 Available to backorder	Ball Bearing		£6.97 £5.81
	23		HV586 96 64-01 Available to backorder	Pedal		£14.10 £11.75
	24		HV586 96 64-02 Available to backorder	Pedal		£18.26 £15.22
	25		HV506 56 65-01 Available to backorder	Clip		£0.90 £0.75
	26		HV725 23 64-61 Available to backorder	Screw Ehhft		£2.56 £2.13

Description

Husqvarna R213 C

Model Year -

Pedals - Parts Diagram
