Husqvarna R213 C - Chassis Rear 2

Name: Husqvarna R213 C - Chassis Rear 2
SKU: r213_c_chassis_rear_2-group
Price: 1.29 GBP
Availability: InStock

Part No. r213_c_chassis_rear_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna R213 C

Model Year -

Chassis Rear 2 - Parts Diagram

	Part No.	Details
1	HV506 98 63-01 Available to backorder	Transmission	£874.14 £728.45
2	HV725 24 67-51 Available to backorder	Screw Ehhm	£7.70 £6.42
3	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91

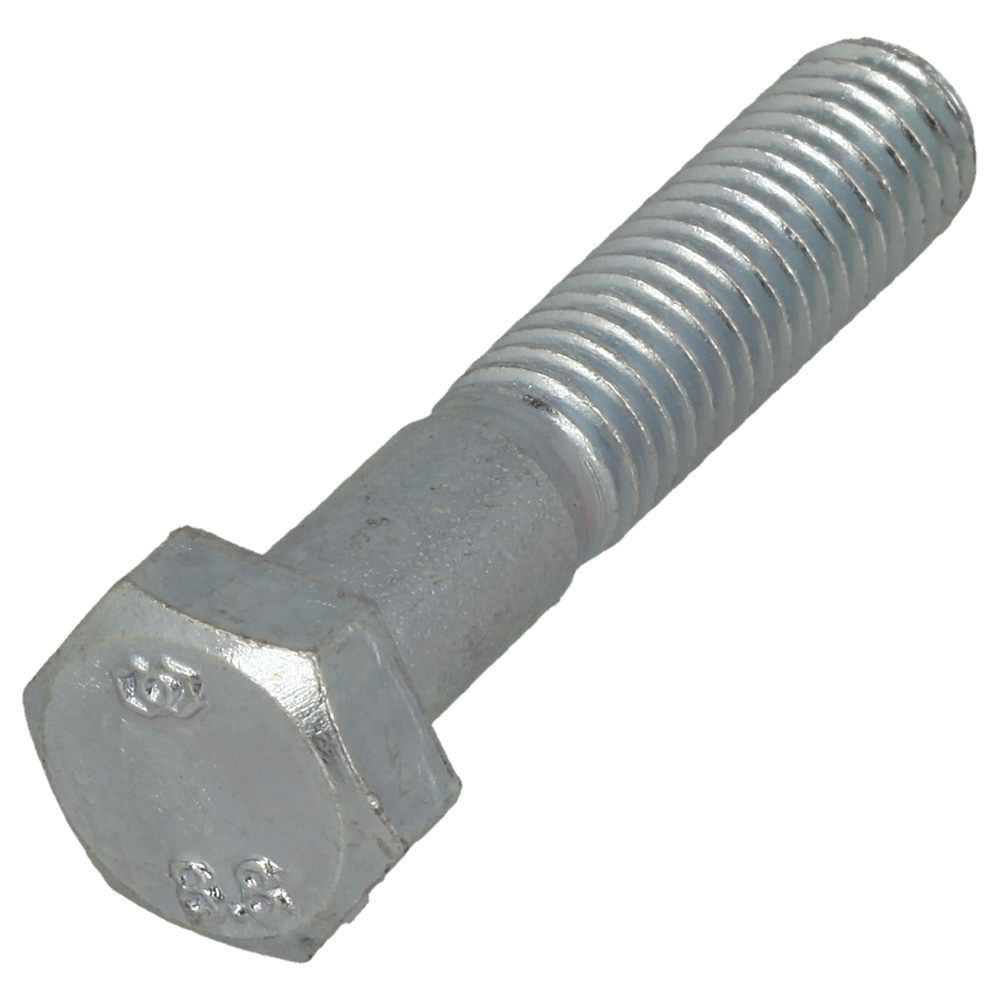

5	HV725 24 59-51 Available to backorder	Screw Ehhmfor 967150401. 966756901	£6.40 £5.33
5	HV725 24 62-51 Available to backorder	Screw Ehhmfor 967846601. 967291002. 967291001	£6.29 £5.24
7	HV579 59 68-01 Available to backorder	Lever	£18.60 £15.50
8	HV584 28 86-04 Available to backorder	Washerfor 967846601. 967291002. 967291001	£3.40 £2.83
9	HV725 24 51-71 Available to backorder	Screw Ehhmfor 967150401. 966756901	£4.50 £3.75
10	HV506 98 75-01 Available to backorder	Adjustment Rod	£15.66 £13.05
11	HV732 21 14-01 Available to backorder	Lock Nut	£1.55 £1.29
12	HV506 98 82-01 Available to backorder	Frikopplingsstång	£12.37 £10.31
13	HV506 83 43-01 Available to backorder	Spring	£3.84 £3.20
14	HV506 98 84-01 Available to backorder	Belt Tensioner Assy	£78.48 £65.40
16	HV506 94 69-01 In stock	Pulley	£37.76 £31.47
17	HV725 24 55-51 Available to backorder	Screwfor 967291002. 967291001. 967150401. 966756901	£3.59 £2.99
17	HV725 24 55-71 Available to backorder	Screw Ehhmfor 967846601. 967291002. 967291001	£3.41 £2.84
18	HV734 11 64-41 In stock	Washer	£3.25 £2.71
19	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
20	HV506 98 86-01 In stock	Spring	£4.38 £3.65
21	HV506 98 88-01 Available to backorder	Pendulum	£8.34 £6.95
23	HV506 98 90-01 Available to backorder	Expansion Tank	£36.54 £30.45

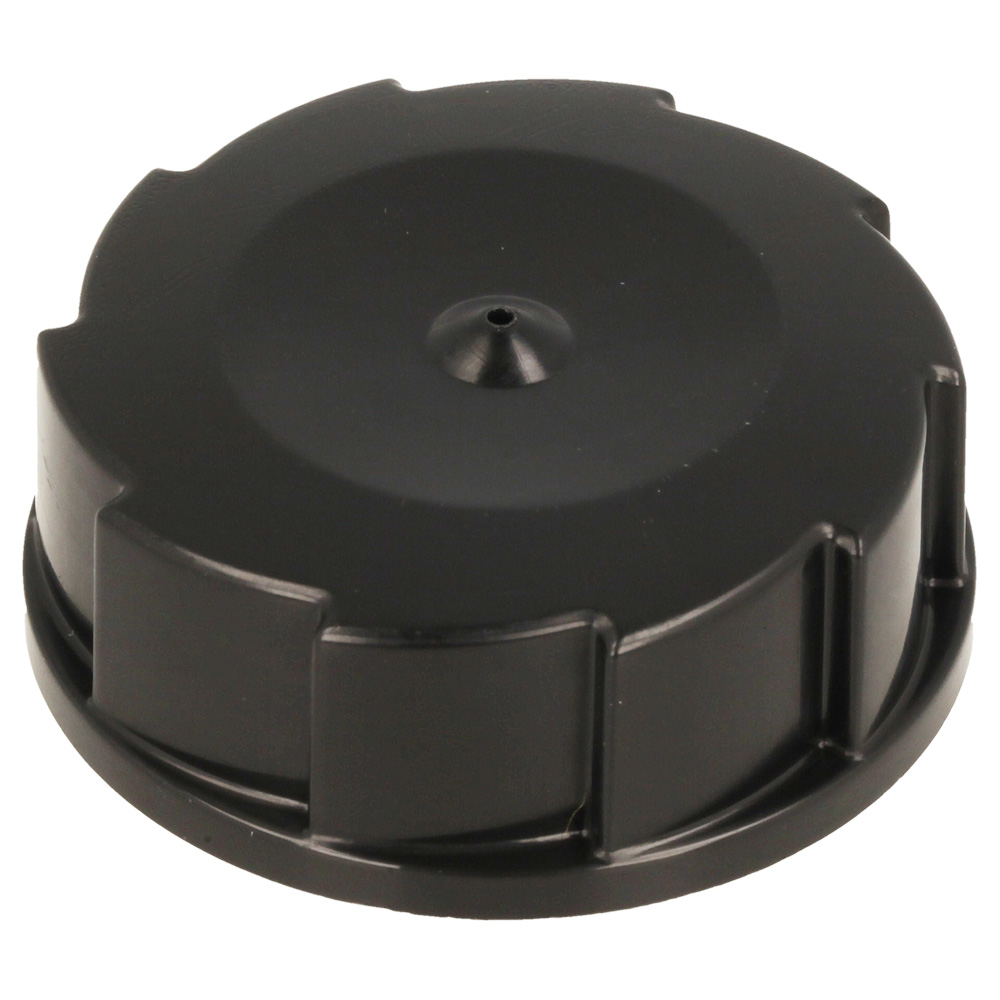

24	HV590 32 47-01 Available to backorder	Tank Cap Assyfor 967150401. 966756901	£10.43 £8.69
25	HV505 13 11-02 Available to backorder	Hose Clamp	£7.06 £5.88
26	HV506 98 72-01 Available to backorder	Momentfästefor 967150401. 966756901	£25.00 £20.83
27	HV731 23 18-01 Available to backorder	Hexagon Nutfor 967150401. 966756901	£3.22 £2.68
